Gitlab+Jenkins+hexo实现CICD持续集成

1. 介绍

• Gitlab+Jenkins+Docker+Harbor+K8S集群 的CICD搭建教程

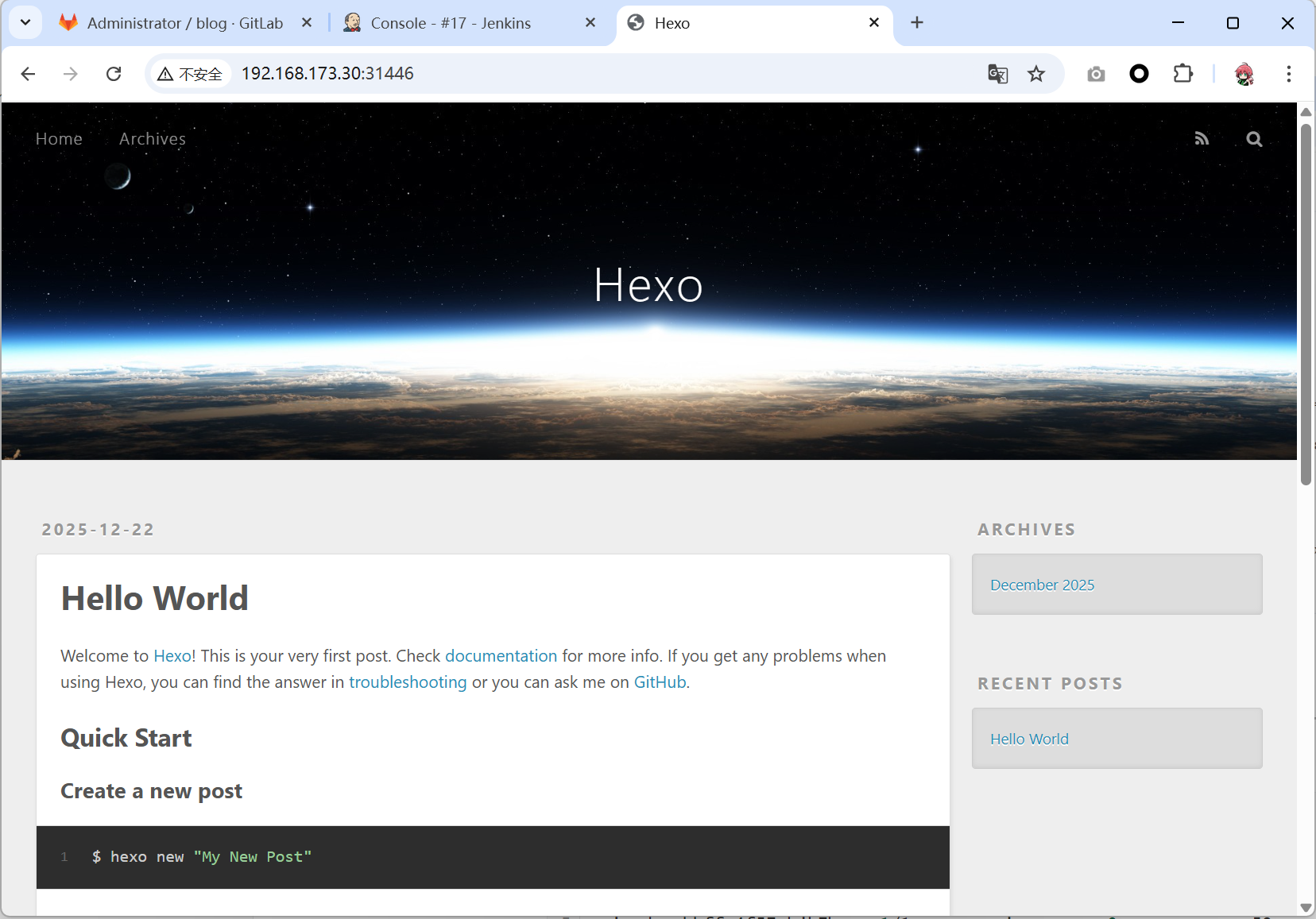

• 在搭建好的CICD平台上持续集成部署hexo博客系统
• 其中Gitlab+Jenkins +Harbor都是通过容器化部署

• 篇幅有限，关于CD环境k8s集群这里用之前部署好的，并且已经做了kubeconfig证书

• 下面为涉及到的机器：

用到的机器	ip
客户机	本地物理机
Gitlab+Jenkins+Docker	192.168.173.10
docker镜像仓库:harbor	192.168.173.20
k8s集群-master节点	192.168.173.30
k8s集群-node节点	192.168.173.40
k8s集群-node节点	192.168.173.50

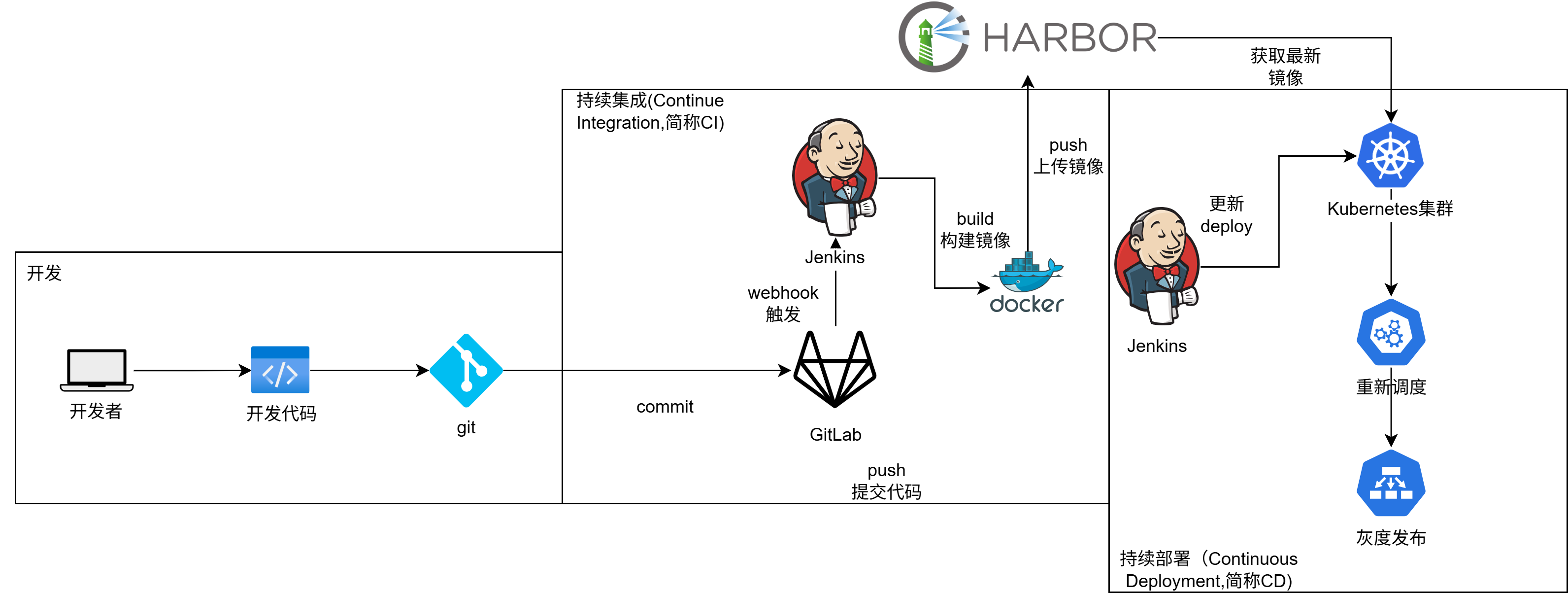

1. 这里客户机用本地的IDE持续编码，然后push代码到gitlab。
2. gitlab中的web钩子触发jenkins中配置好的构建触发器，通过shell命令拉取gitlab仓库中的代码。
3. 通过拉取的应用源码和Dockerfile文件来构建应用镜像。
4. 构建完成后将应用镜像push到harbor私有镜像仓库。

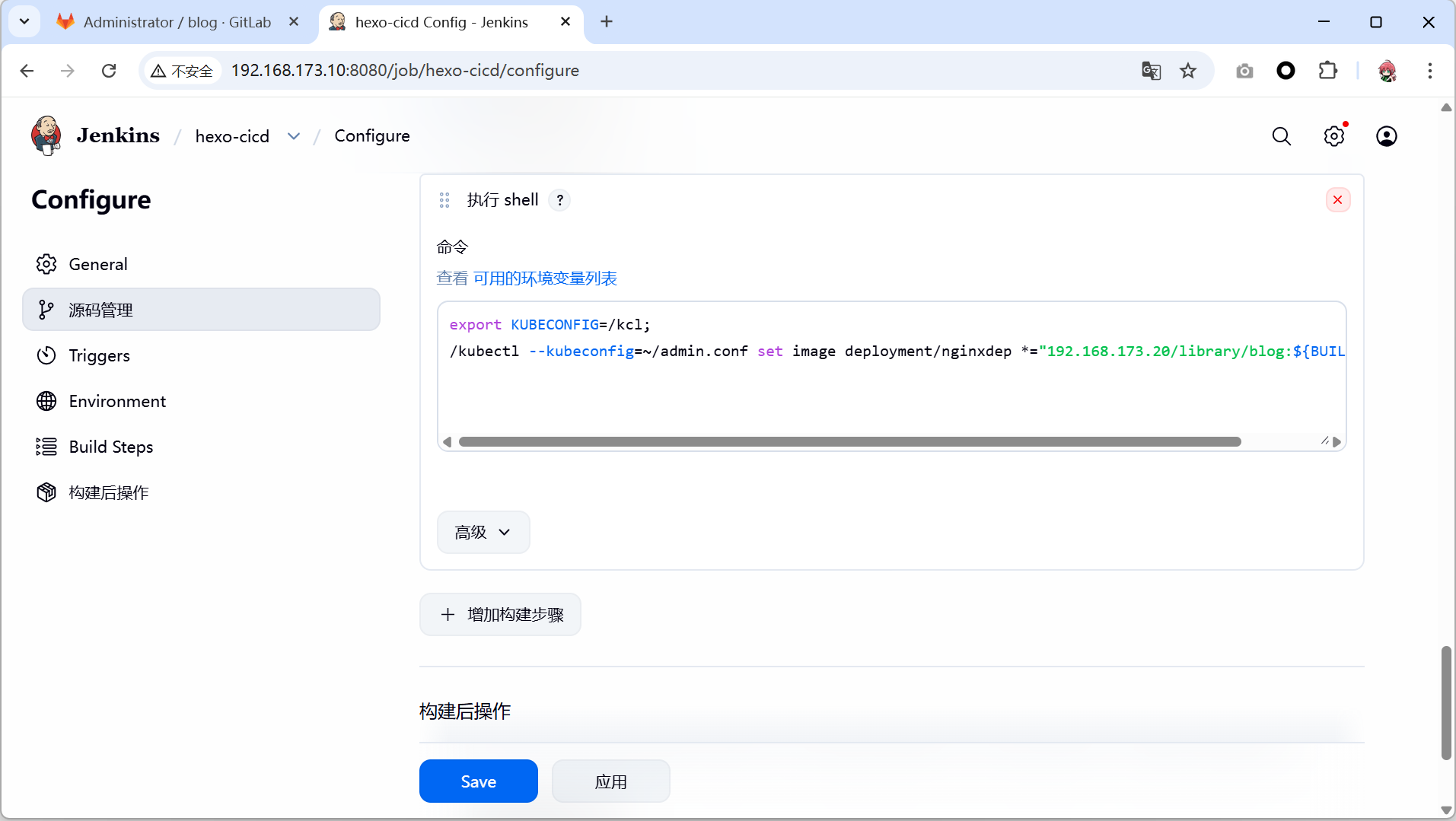

5. 通过shell命令的方式在jenkins中用kubelet客户端将镜像从私有仓库拉取到k8s集群并更新其deploy中的镜像。
6. 默认deploy更新副本的方式为滚动更新，整个流程中，只有客户机push代码是手手动的方式，其他全是自动。

2. CICD环境搭建

CI即为持续集成(Continue Integration,简称CI)，用通俗的话讲，就是持续的整合版本库代码编译后制作应用镜像。建立有效的持续集成环境可以减少开发过程中一些不必要的问题、提高代码质量、快速迭代等,

• 常用的工具和平台有:
  • Jenkins:基于Java开发的一种持续集成工具,用于监控持续重复的工作,旨在提供一个开放易用的软件平台,使软件的持续集成变成可能。
  • Bamboo: 是一个企业级商用软件,可以部署在大规模生产环境中。

CD即持续交付Continuous Delivery和持续部署Continuous Deployment，用通俗的话说，即可以持续的部署到生产环境给客户使用，这里分为两个阶段，持续交付我理解为满足上线条件的过程，但是没有上线，持续部署，即为上线应用的过程

关于CD环境，我们使用以前搭建好的K8s集群，K8s集群可以实现应用的健康检测，动态扩容，滚动更新等优点，关于K8s集群的搭建，小伙伴可以看看我的其他文章

2.1 docker环境

• 点击进入华为开源镜像Docker安装，按照步骤装好
  • 华为开源镜像站
• 自行配置好镜像加速服务，否则境内无法push镜像，可以参考这篇文章

2.2 GitLab配置

GitLab是一个基于Git的版本控制平台，,提供了Git仓库管理、代码审查、问题跟踪、活动反馈和wiki

[root@jenkins ~]# docker pull beginor/gitlab-ce

• 创建共享卷目录

[root@jenkins ~]# mkdir -p /data/gitlab/etc/ /data/gitlab/log/ /data/gitlab/data
[root@jenkins ~]# chmod 777 /data/gitlab/etc/ /data/gitlab/log/ /data/gitlab/data/

• 创建gitlab容器

[root@jenkins ~]# docker run -itd \
--name=gitlab --restart=always \
--privileged=true   \
-p 8443:443  -p 80:80 -p 222:22 \
-v  /data/gitlab/etc:/etc/gitlab \
-v  /data/gitlab/log:/var/log/gitlab \
-v  /data/gitlab/data:/var/opt/gitlab  beginor/gitlab-ce

[root@jenkins ~]# docker ps
CONTAINER ID   IMAGE               COMMAND             CREATED          STATUS                             PORTS                                                                                                                   NAMES
c3557530ea88   beginor/gitlab-ce   "/assets/wrapper"   11 seconds ago   Up 10 seconds (health: starting)   0.0.0.0:80->80/tcp, [::]:80->80/tcp, 0.0.0.0:222->22/tcp, [::]:222->22/tcp, 0.0.0.0:8443->443/tcp, [::]:8443->443/tcp   gitlab

切记:这里的端口要设置成80，要不push项目会提示没有报错，如果宿主机端口被占用，需要把这个端口腾出来

• 关闭容器修改配置文件

[root@jenkins ~]# docker stop gitlab

• external_url 'http://192.168.173.10'

[root@jenkins ~]# cat /data/gitlab/etc/gitlab.rb |grep external_url |grep -Ev ^#
external_url 'http://192.168.173.10'

• gitlab_rails['gitlab_ssh_host'] = '192.168.173.10'

[root@jenkins ~]# cat /data/gitlab/etc/gitlab.rb |grep gitlab_ssh_host
gitlab_rails['gitlab_ssh_host'] = '192.168.173.10'

• gitlab_rails[gitlab_shell_ssh_port] = 222

[root@jenkins ~]# cat /data/gitlab/etc/gitlab.rb | grep gitlab_shell_ssh
gitlab_rails['gitlab_shell_ssh_port'] = 222

• 修改/data/gitlab/data/gitlab-rails/etc/gitlab.yml 中的host信息

[root@jenkins ~]# vim /data/gitlab/data/gitlab-rails/etc/gitlab.yml
gitlab:
    ## Web server settings (note: host is the FQDN, do not include http://)
    host: 192.168.173.10
    port: 80
    https: false

• 修改完配置文件之后。直接启动容器

[root@jenkins ~]# docker start gitlab

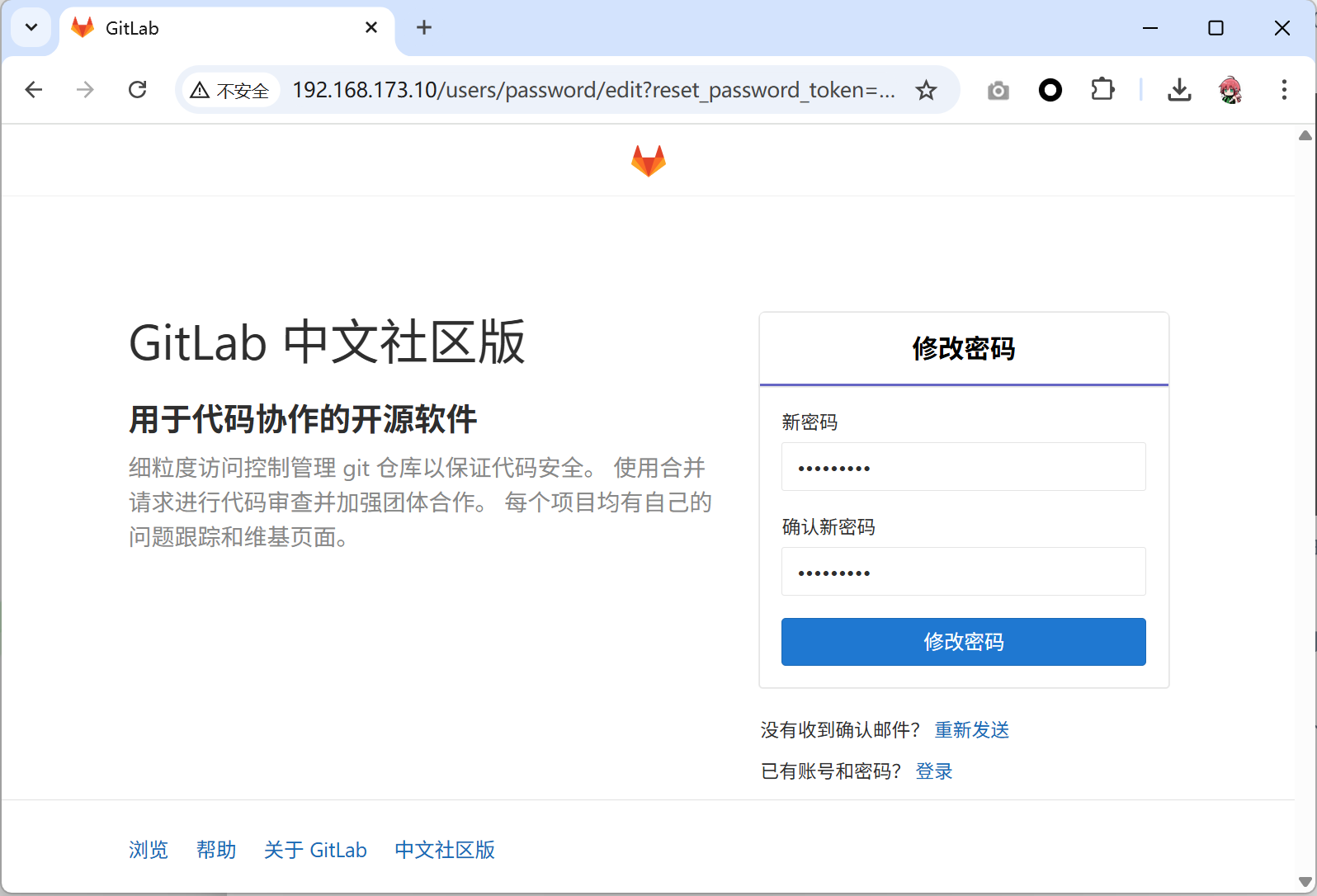

• 等待一段时间启动，在宿主机所在的物理机访问，http://192.168.173.10/ ，会自动跳转到修改密码(root用户),如果密码设置的没有满足一定的复杂性，则会报500，需要重新设置

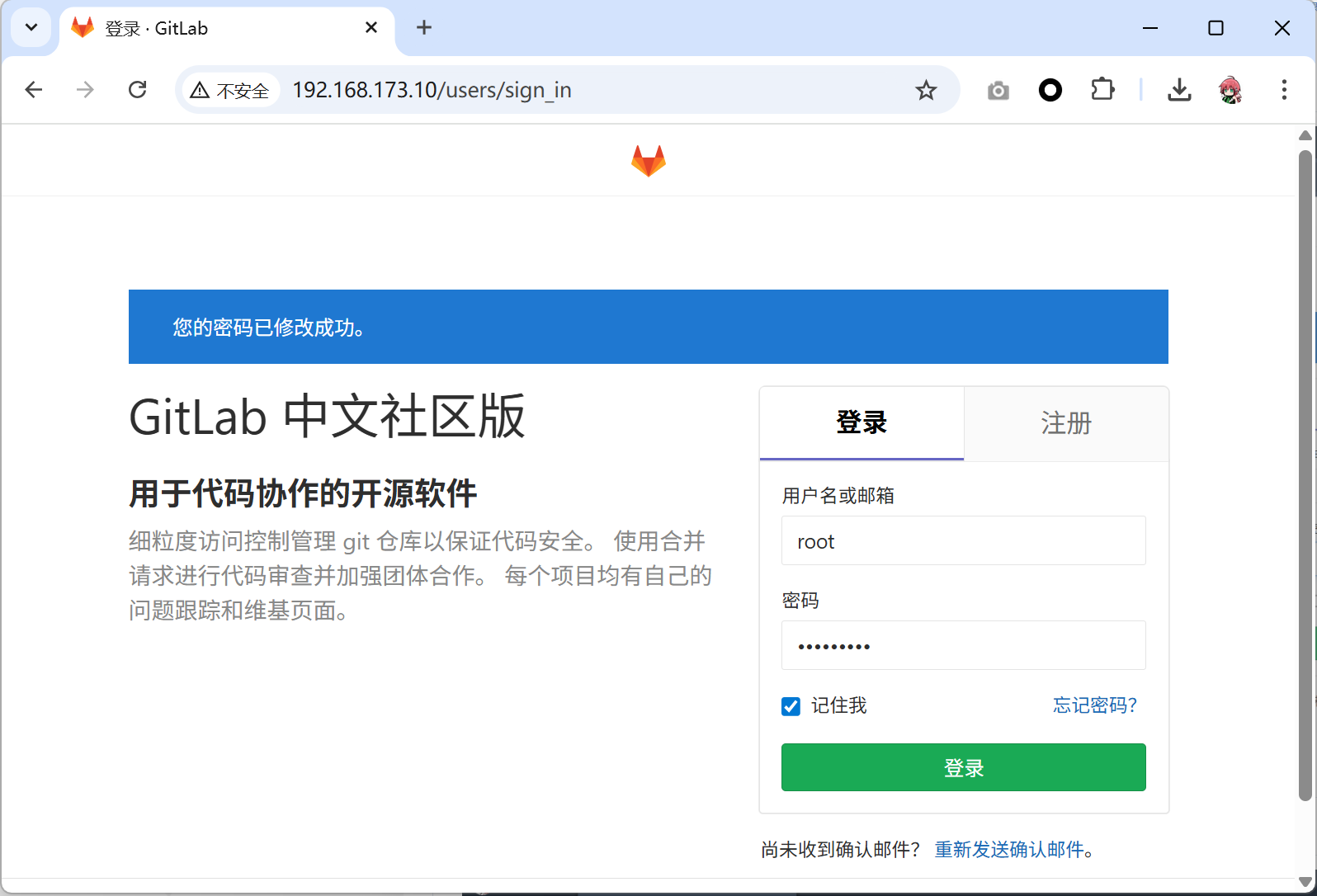

• 使用root用户登录进系统

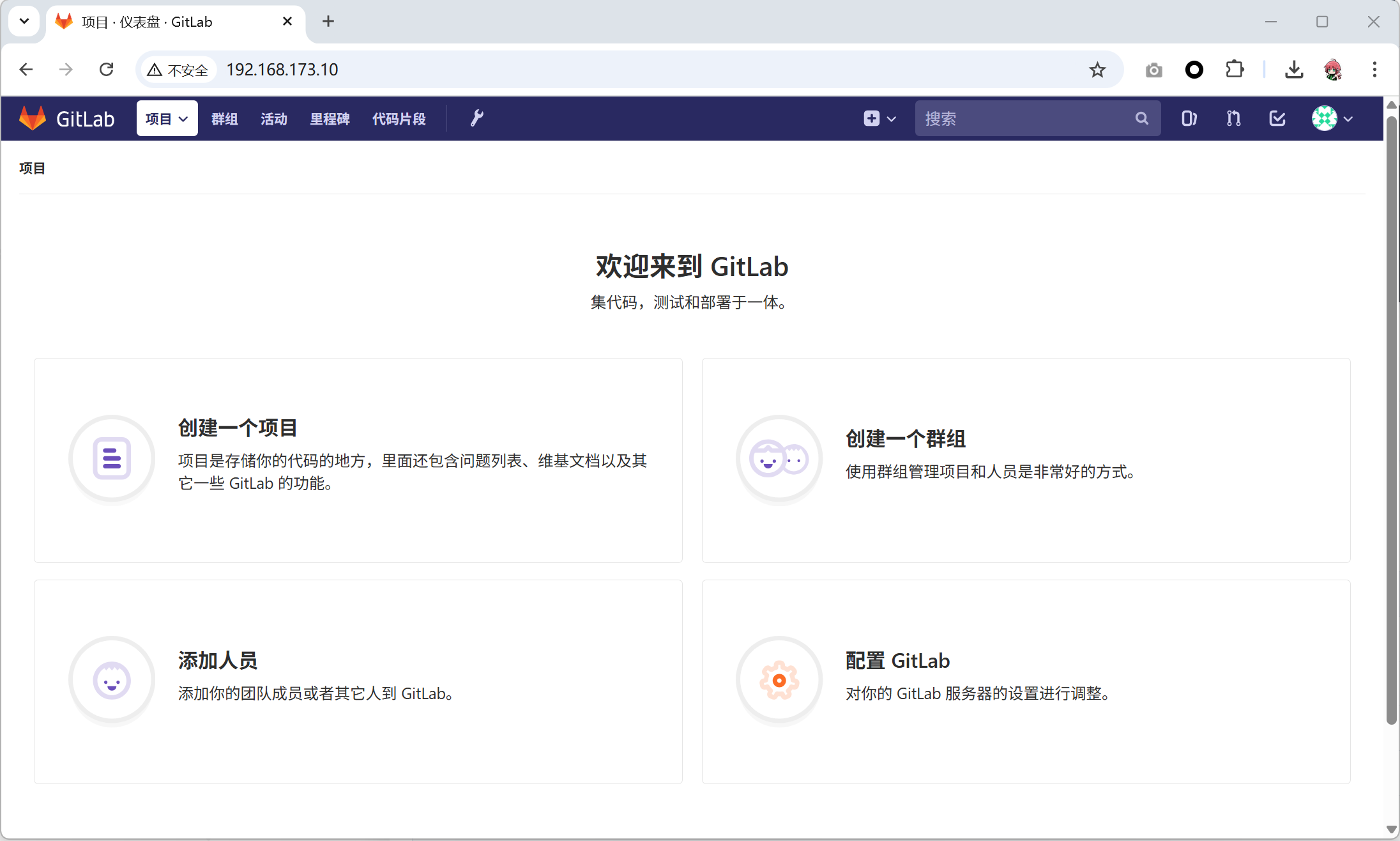

• 登录后的页面

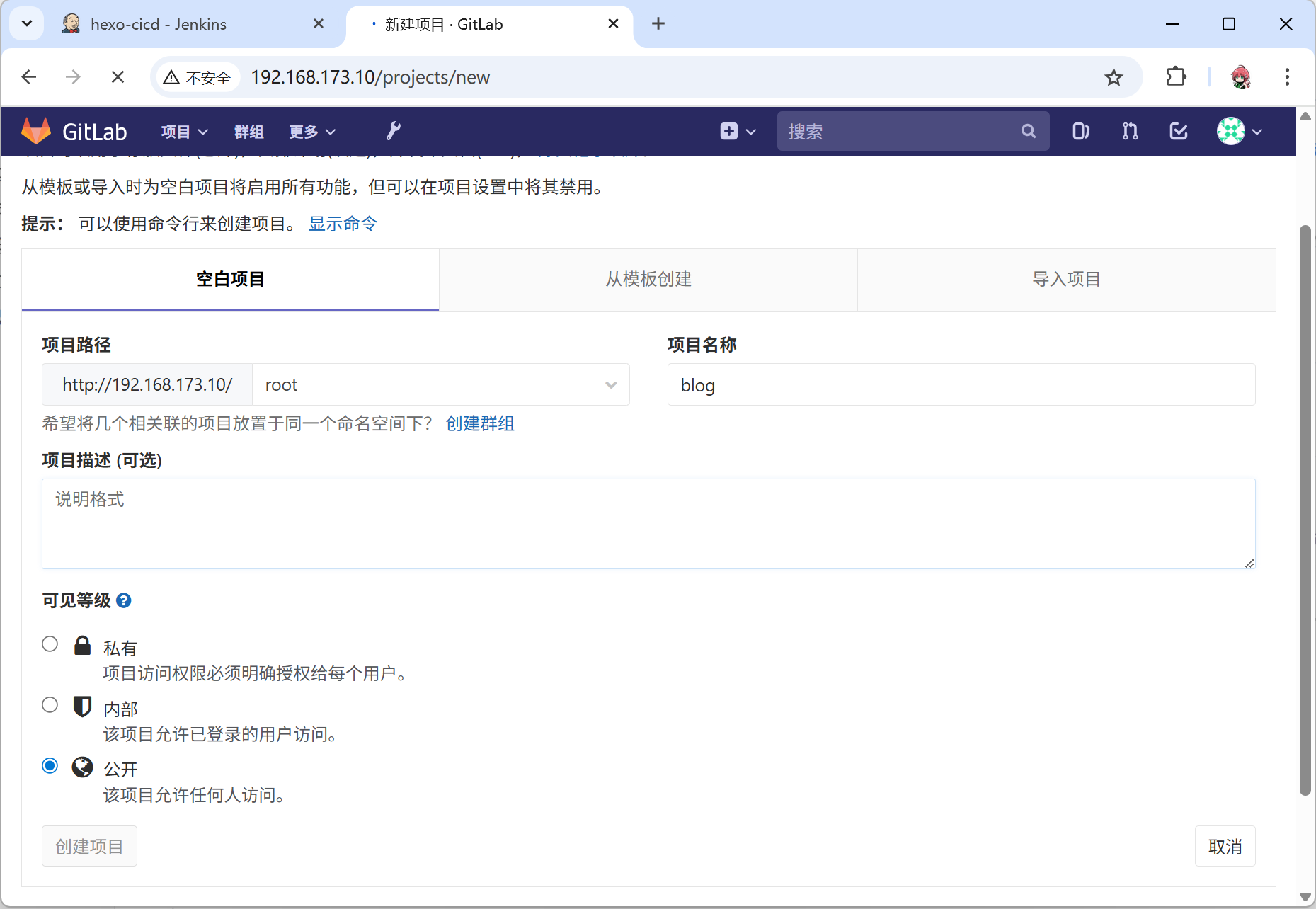

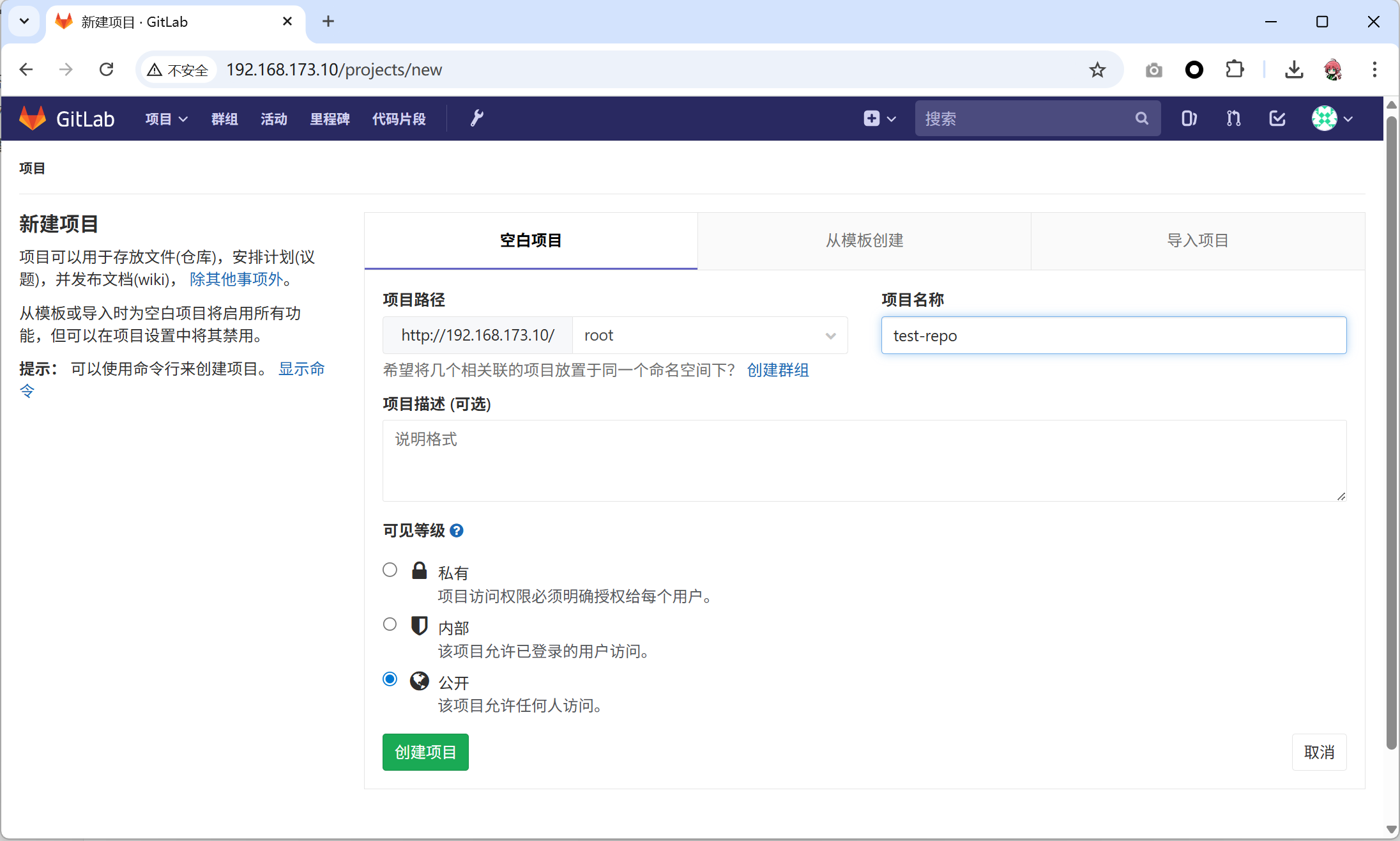

• 下面是创建一个项目用于熟悉和测试gitlab

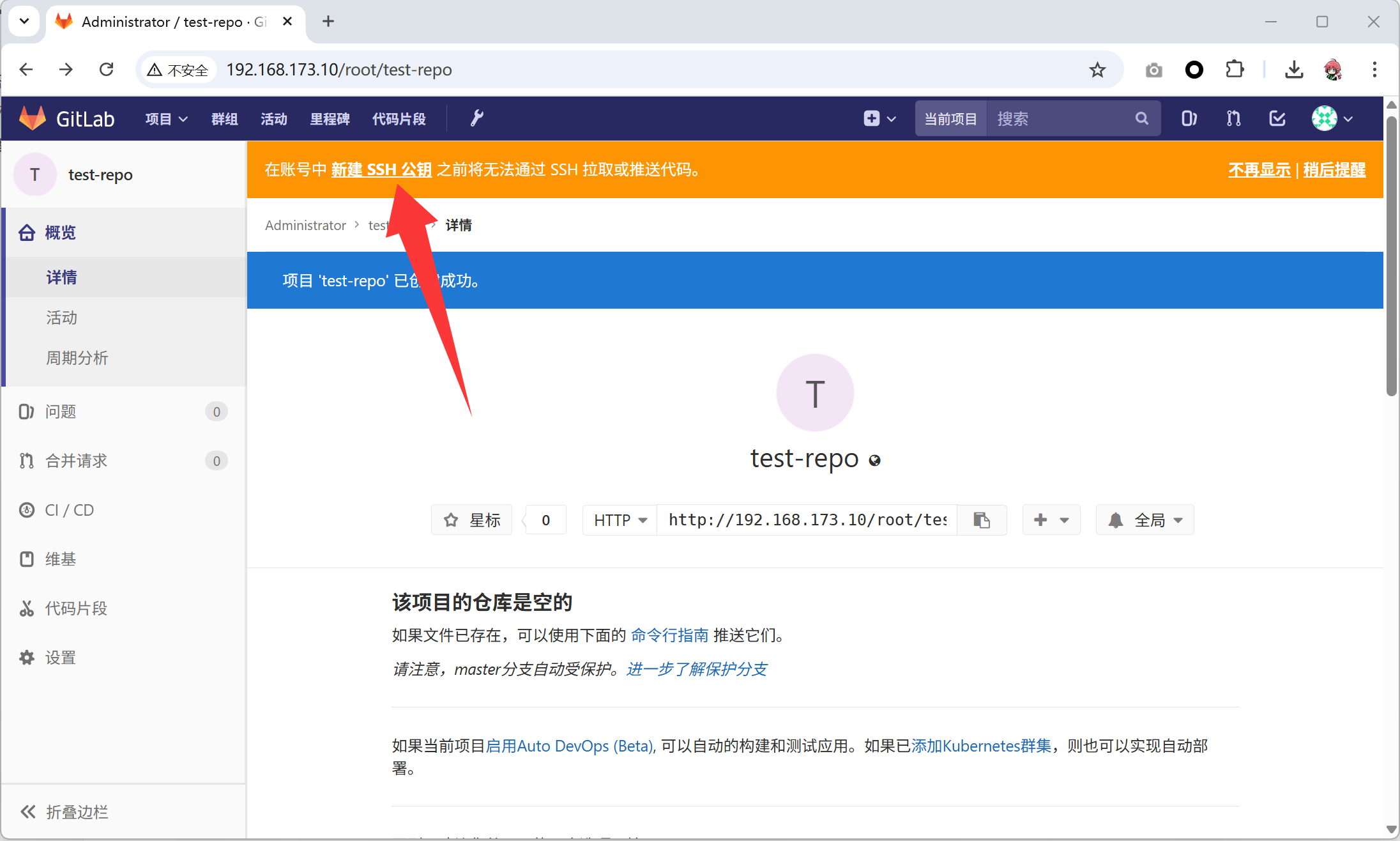

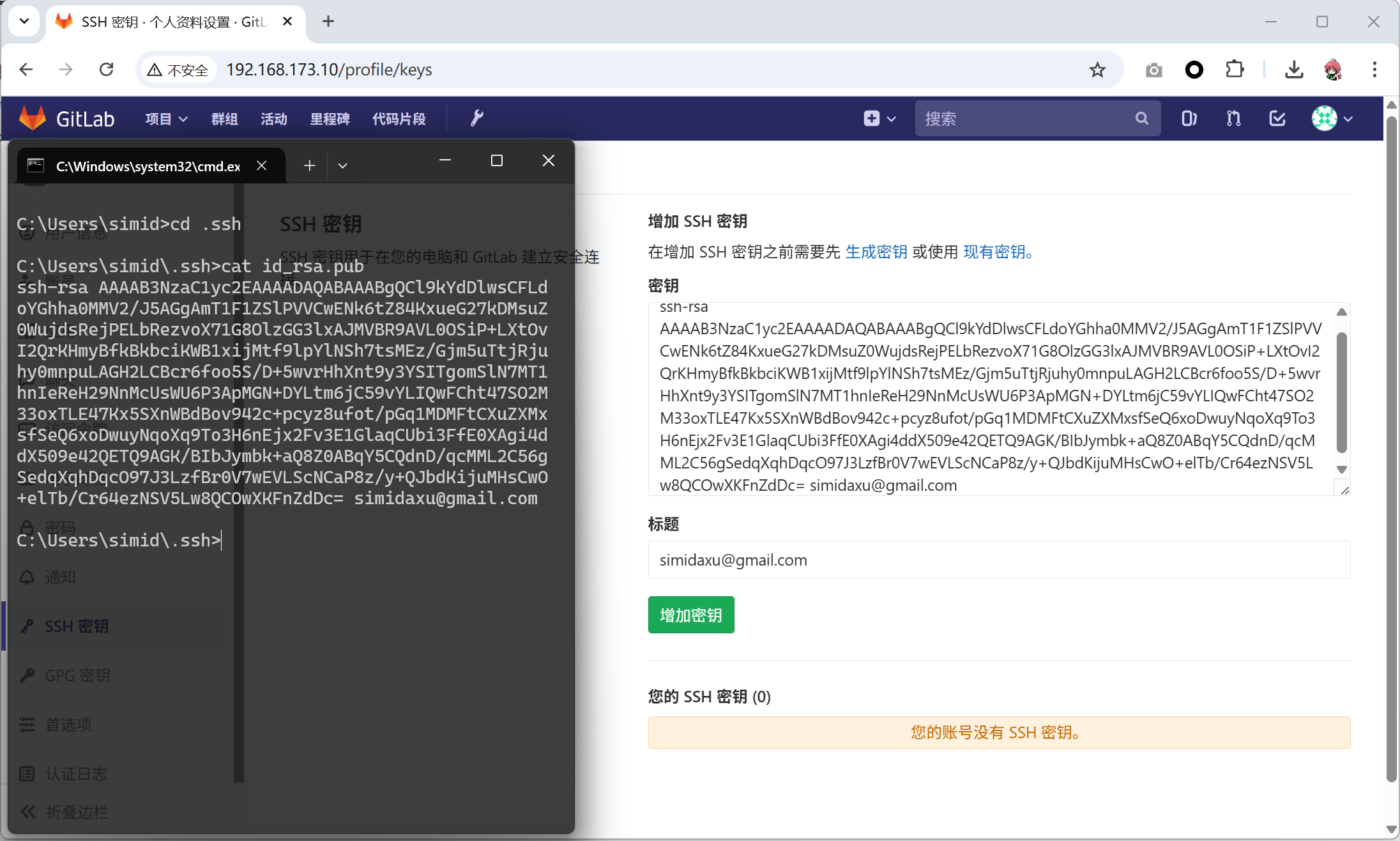

• 将自己的公钥传上去

• 复制公钥

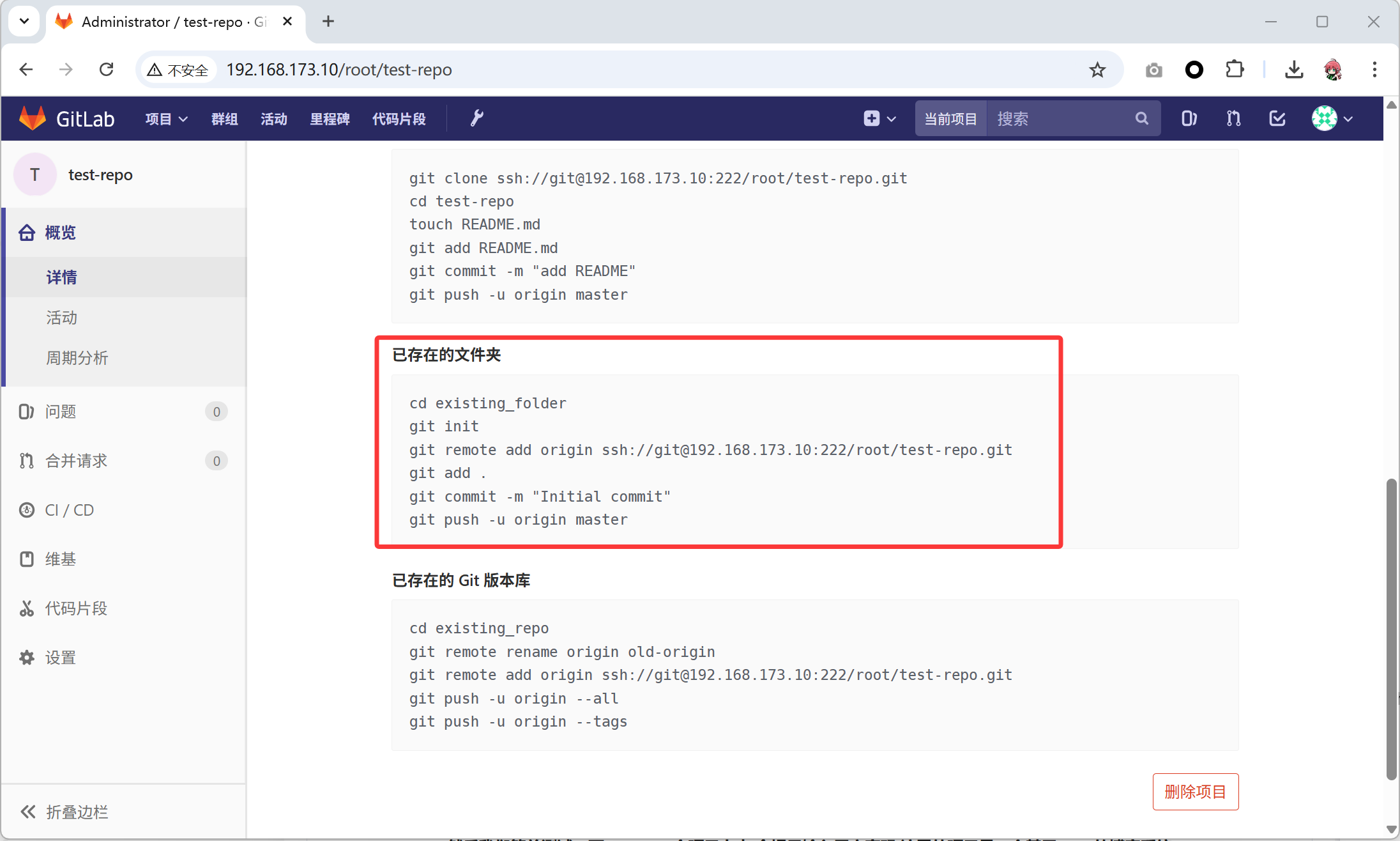

• 随便上传点东西测试，参考代码在网页上

• 上传的代码

C:\Users\aaronxu\Desktop\flask-demo>git init
C:\Users\aaronxu\Desktop\flask-demo>git remote add origin ssh://git@192.168.173.10:222/root/test-repo.git
C:\Users\aaronxu\Desktop\flask-demo>git add .
C:\Users\aaronxu\Desktop\flask-demo>git commit -m "Initial commit"
C:\Users\aaronxu\Desktop\flask-demo>git push -u origin master
The authenticity of host '[192.168.173.10]:222 ([192.168.173.10]:222)' can't be established.
ED25519 key fingerprint is SHA256:RjbHUmJ7hvYyxq4Yu7/TXk1/WW390UpVIyY8f6MAdJ4.
This key is not known by any other names.
Are you sure you want to continue connecting (yes/no/[fingerprint])? yes
Warning: Permanently added '[192.168.173.10]:222' (ED25519) to the list of known hosts.
Enumerating objects: 14, done.
Counting objects: 100% (14/14), done.
Delta compression using up to 16 threads
Compressing objects: 100% (12/12), done.
Writing objects: 100% (14/14), 3.13 KiB | 1.57 MiB/s, done.
Total 14 (delta 1), reused 0 (delta 0), pack-reused 0 (from 0)
To ssh://192.168.173.10:222/root/test-repo.git
 * [new branch]      master -> master
branch 'master' set up to track 'origin/master'.

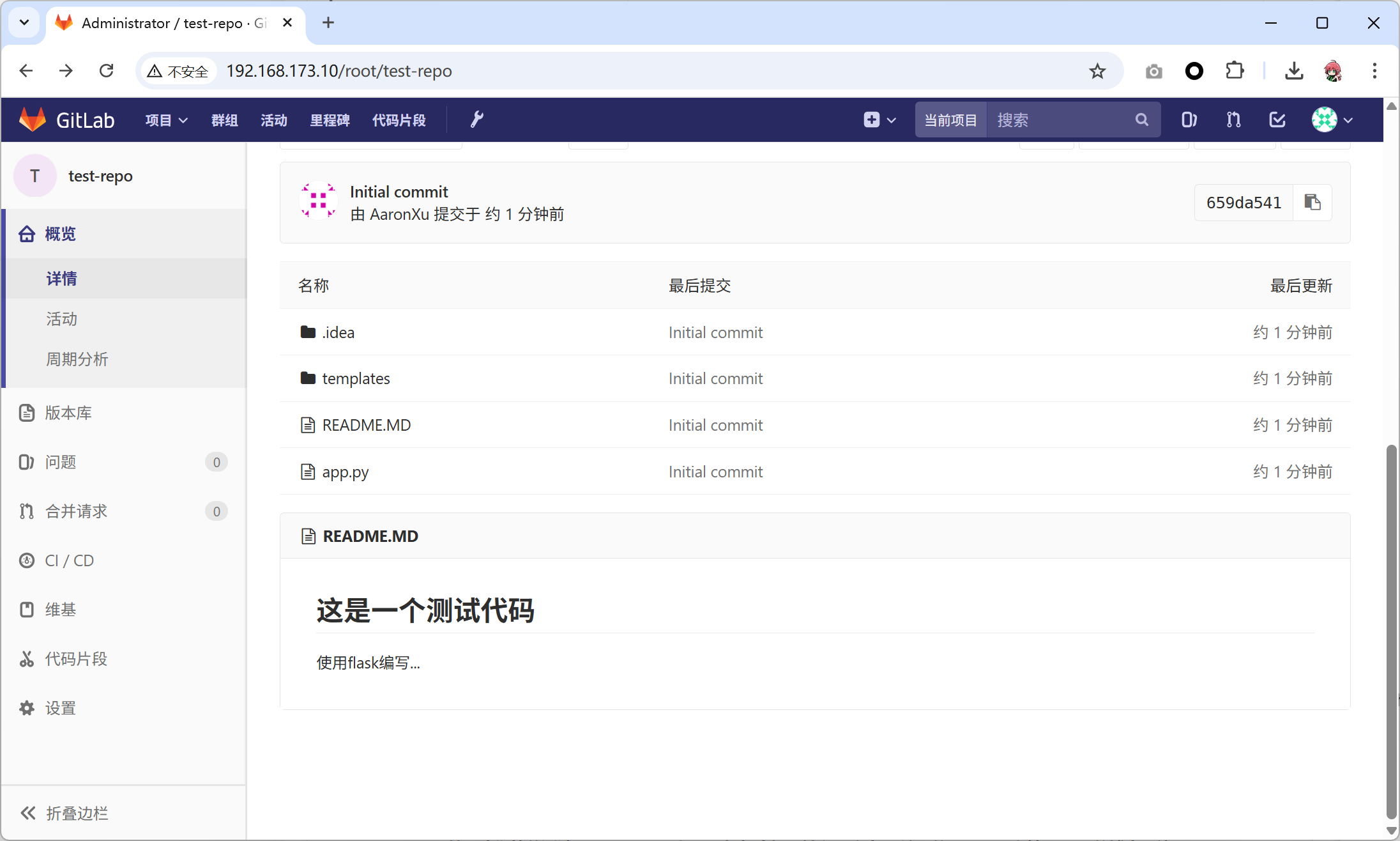

• 确认代码上传成功

2.3 Harbor配置

• 这里仓库我们选择harbor，因为有web页面，当然也可以使用 registry
• 首先需要设置selinux、防火墙

[root@harbor ~]# cat /etc/selinux/config | grep -Ev "^#|^$"
SELINUX=disabled
SELINUXTYPE=targeted
[root@harbor ~]# getenforce
Disabled
[root@harbor ~]# systemctl disable --now firewalld

• 安装并启动docker并安装docker-compose
  • docker-compose下载地址：https://github.com/docker/compose/releases/download/v5.0.0/docker-compose-linux-x86_64

[root@harbor ~]# mv docker-compose-linux-x86_64 /bin/docker-compose
[root@harbor ~]# chmod +x /bin/docker-compose
[root@harbor ~]# docker-compose -v
Docker Compose version v5.0.0

• 解压harbor 安装包：harbor-offline-installer-v2.14.1.tgz，导入相关镜像

[root@harbor ~]# tar xzvf harbor-offline-installer-v2.14.1.tgz
[root@harbor ~]# docker load -i harbor/harbor.v2.14.1.tar.gz

• 修改配置文件

[root@harbor ~]# cd harbor
[root@harbor harbor]# cp harbor.yml.tmpl harbor.yml
[root@harbor harbor]# vim harbor.yml

• 设置主机地址和密码， 把https部分的内容注释掉

[root@harbor harbor]# cat harbor.yml |grep -Ev "^ *#|^ *$"
hostname: 192.168.173.20
...........
harbor_admin_password: Harbor12345
...........

[root@harbor harbor]# ./prepare
prepare base dir is set to /root/harbor
WARNING:root:WARNING: HTTP protocol is insecure. Harbor will deprecate http protocol in the future. Please make sure to upgrade to https
Generated configuration file: /config/portal/nginx.conf
Generated configuration file: /config/log/logrotate.conf
Generated configuration file: /config/log/rsyslog_docker.conf
Generated configuration file: /config/nginx/nginx.conf
Generated configuration file: /config/core/env
Generated configuration file: /config/core/app.conf
Generated configuration file: /config/registry/config.yml
Generated configuration file: /config/registryctl/env
Generated configuration file: /config/registryctl/config.yml
Generated configuration file: /config/db/env
Generated configuration file: /config/jobservice/env
Generated configuration file: /config/jobservice/config.yml
copy /data/secret/tls/harbor_internal_ca.crt to shared trust ca dir as name harbor_internal_ca.crt ...
ca file /hostfs/data/secret/tls/harbor_internal_ca.crt is not exist
copy  to shared trust ca dir as name storage_ca_bundle.crt ...
copy None to shared trust ca dir as name redis_tls_ca.crt ...
Generated and saved secret to file: /data/secret/keys/secretkey
Successfully called func: create_root_cert
Generated configuration file: /compose_location/docker-compose.yml
Clean up the input dir

• 开始安装

[root@harbor harbor]# ./install.sh
.............
✔ ----Harbor has been installed and started successfully.----

• 查看相关的容器

[root@harbor harbor]# docker ps
CONTAINER ID   IMAGE                                 COMMAND                  CREATED          STATUS                    PORTS                                     NAMES
10f0f49ded81   goharbor/harbor-jobservice:v2.14.1    "/harbor/entrypoint.…"   48 seconds ago   Up 40 seconds (healthy)                                             harbor-jobservice
d4c0e7b72e22   goharbor/nginx-photon:v2.14.1         "nginx -g 'daemon of…"   48 seconds ago   Up 46 seconds (healthy)   0.0.0.0:80->8080/tcp, [::]:80->8080/tcp   nginx
1a57e98a9b1f   goharbor/harbor-core:v2.14.1          "/harbor/entrypoint.…"   49 seconds ago   Up 47 seconds (healthy)                                             harbor-core
deb551d07bc1   goharbor/redis-photon:v2.14.1         "redis-server /etc/r…"   49 seconds ago   Up 47 seconds (healthy)                                             redis
5614fe4b2dfd   goharbor/harbor-registryctl:v2.14.1   "/home/harbor/start.…"   49 seconds ago   Up 47 seconds (healthy)                                             registryctl
ede80c0bf943   goharbor/registry-photon:v2.14.1      "/home/harbor/entryp…"   49 seconds ago   Up 47 seconds (healthy)                                             registry
e57caba4f757   goharbor/harbor-portal:v2.14.1        "nginx -g 'daemon of…"   49 seconds ago   Up 47 seconds (healthy)                                             harbor-portal
3faf547ef47d   goharbor/harbor-db:v2.14.1            "/docker-entrypoint.…"   49 seconds ago   Up 47 seconds (healthy)                                             harbor-db
156547ee999a   goharbor/harbor-log:v2.14.1           "/bin/sh -c /usr/loc…"   49 seconds ago   Up 48 seconds (healthy)   127.0.0.1:1514->10514/tcp                 harbor-log

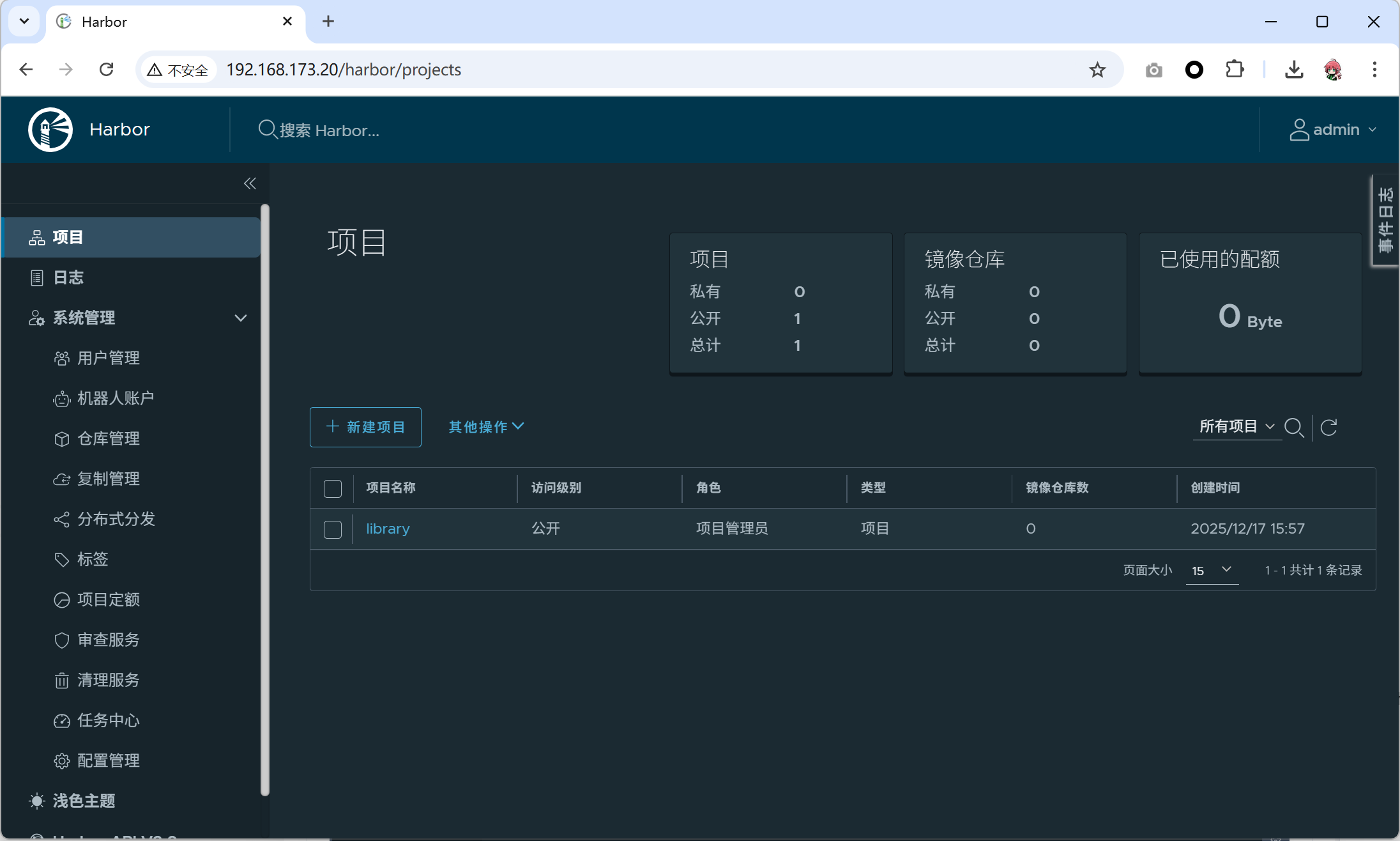

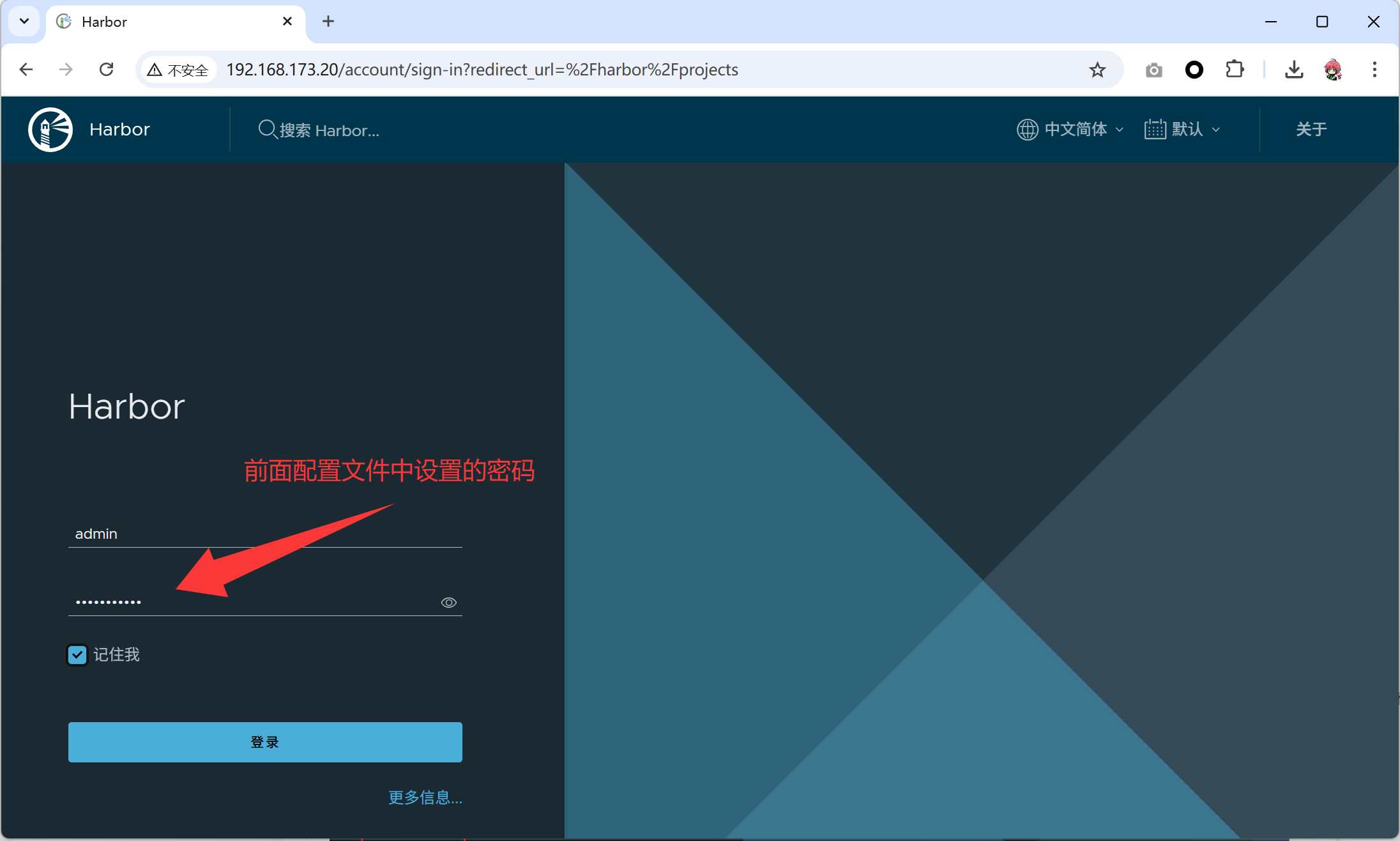

• 使用浏览器访问，并且完成登录

• CI服务器的docker配置
  • 这里因为我们要在192.168.173.10(CI服务器)上push镜像到192.168.173.20(私仓)，所有需要修改CI服务器上的Docker配置。添加仓库地址

[root@jenkins ~]# cat /etc/docker/daemon.json
{
    "insecure-registries": ["192.168.173.20"]
}

[root@jenkins ~]# systemctl daemon-reload
[root@jenkins ~]# systemctl restart docker

• 测试一下

[root@jenkins ~]# docker login 192.168.173.20
Username: admin
Password:

WARNING! Your credentials are stored unencrypted in '/root/.docker/config.json'.
Configure a credential helper to remove this warning. See
https://docs.docker.com/go/credential-store/

Login Succeeded

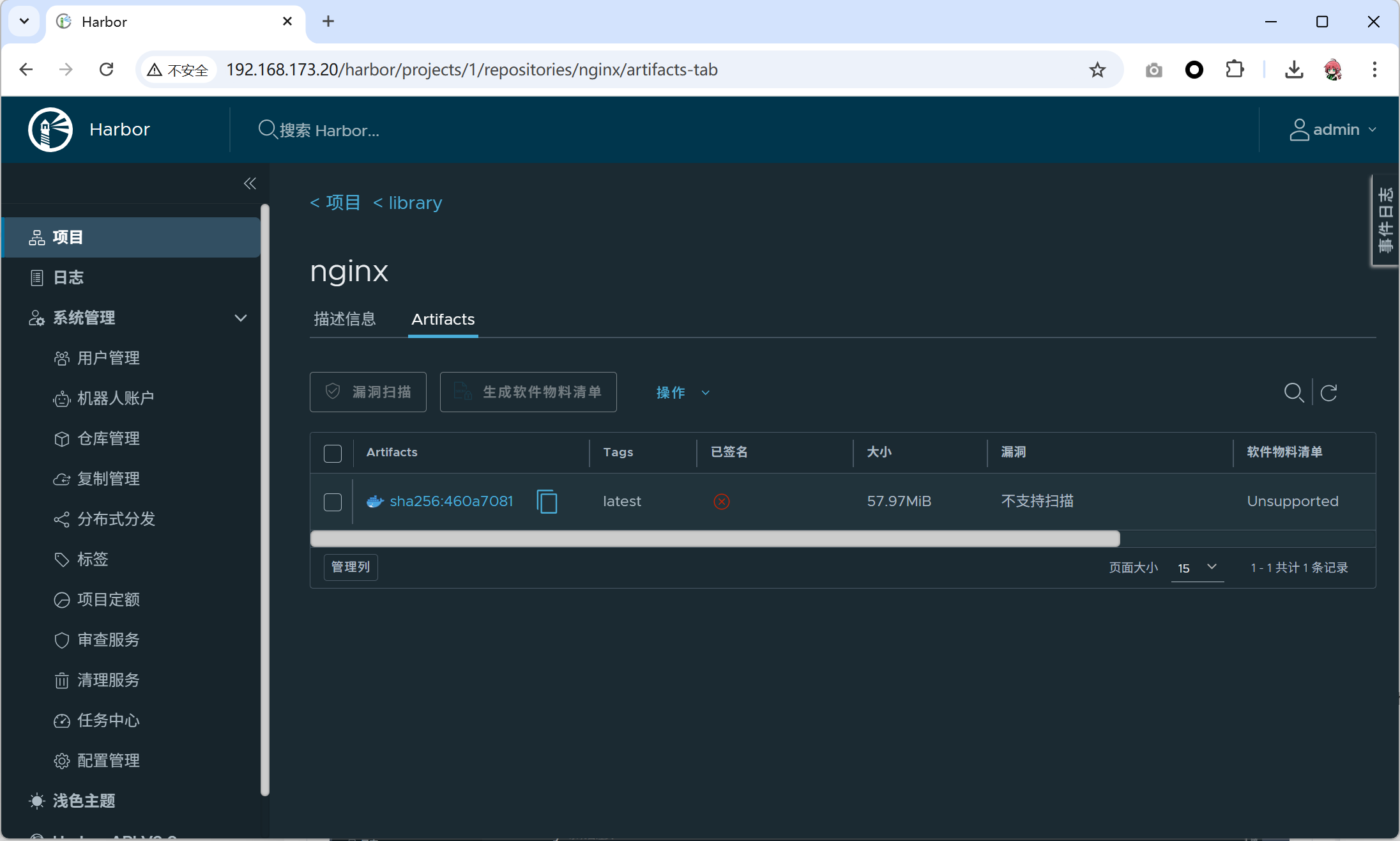

• push一个镜像

[root@jenkins ~]# docker pull nginx
[root@jenkins ~]# docker tag nginx 192.168.173.20/library/nginx
[root@jenkins ~]# docker push 192.168.173.20/library/nginx

2.4 Jenkins配置

• 镜像jenkins拉取

[root@jenkins ~]# docker pull jenkins/jenkins:latest

• 创建共享卷，修改所属组和用户,和容器里相同
  • 这里要改成 1000，是因为容器里是以 jenkins 用户的身份去读写数据，而在容器里jenkins 的 uid 是 1000

[root@jenkins ~]# mkdir /jenkins
[root@jenkins ~]# chown 1000:1000 /jenkins

• 创建 jenkins 容器

[root@jenkins ~]# docker run -dit -p 8080:8080 \
-p 50000:50000 \
--name jenkins  --privileged=true \
--restart=always \
-v /jenkins:/var/jenkins_home jenkins/jenkins:latest
[root@jenkins ~]# docker ps | grep jenkins
cf6baf3b3ba5   jenkins/jenkins:latest   "/usr/bin/tini -- /u…"   26 seconds ago   Up 25 seconds             0.0.0.0:8080->8080/tcp, [::]:8080->8080/tcp, 0.0.0.0:50000->50000/tcp, [::]:50000->50000/tcp                            jenkins

• 浏览器访问

• 为了修改配置，关闭 jenkins 容器

[root@jenkins ~]# docker stop jenkins
jenkins

• 修改Jenkins插件下载服务器为国内地址

[root@jenkins ~]# cat /jenkins/hudson.model.UpdateCenter.xml
<?xml version='1.1' encoding='UTF-8'?>
<sites>
  <site>
    <id>default</id>
    <url>https://mirrors.huaweicloud.com/jenkins/update-center.json</url>
  </site>
</sites>

• 修改谷歌为百度，因为此处json文件为换行，格式比较混乱，使用jq工具查看比较方便

[root@jenkins ~]# yum -y install jq
[root@jenkins ~]# sed -i s#https://www.google.com/#https://www.baidu.com/#g /jenkins/updates/default.json
[root@jenkins ~]# cat /jenkins/updates/default.json | jq '.connectionCheckUrl'
"https://www.baidu.com/"
[root@jenkins ~]# cat /jenkins/updates/default.json | jq 'keys'  # 查看所有的可配置项，也就是json的key
[
  "connectionCheckUrl",
  "core",
  "deprecations",
  "generationTimestamp",
  "id",
  "plugins",
  "signature",
  "updateCenterVersion",
  "warnings"
]

• 重启docker，获取登录密匙，下面初始化的时候用到

[root@jenkins ~]# docker restart jenkins
jenkins
[root@jenkins ~]# cat /jenkins/secrets/initialAdminPassword
fa049883d9a843ab826216069aa7224f

• 需要修改jenkins绑定的docker的启动参数， 让Jenkins可以通过tcp远程操作容器(模拟需要CI的机器在远端，不然本地的话，sock一样可以使用)

[root@jenkins ~]# cat /lib/systemd/system/docker.service |grep -Ev "^#|^$"
.......
ExecStart=/usr/bin/dockerd -H tcp://0.0.0.0:2376 -H fd:// --containerd=/run/containerd/containerd.sock
.......
[root@jenkins ~]# systemctl daemon-reload
[root@jenkins ~]# systemctl restart docker

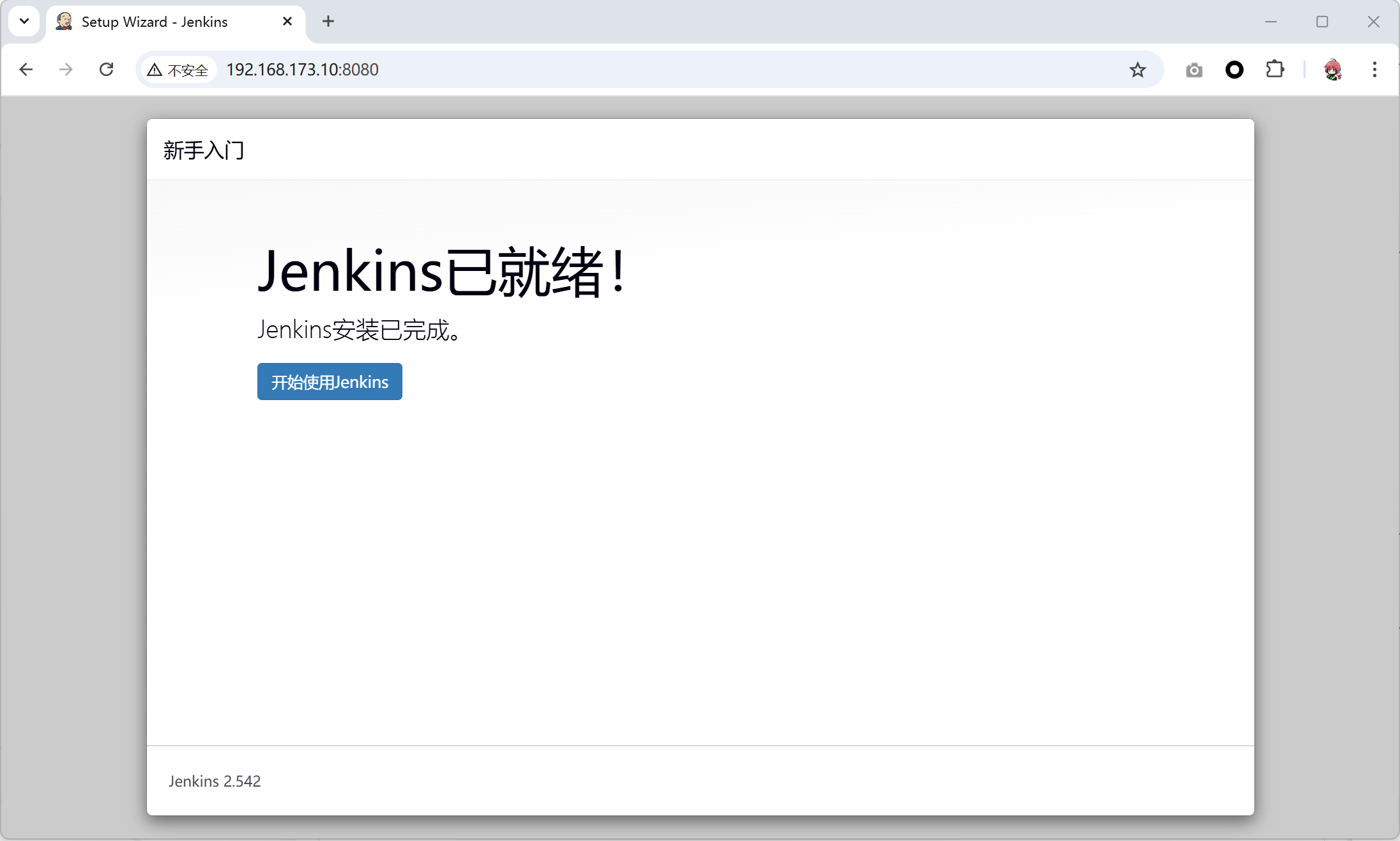

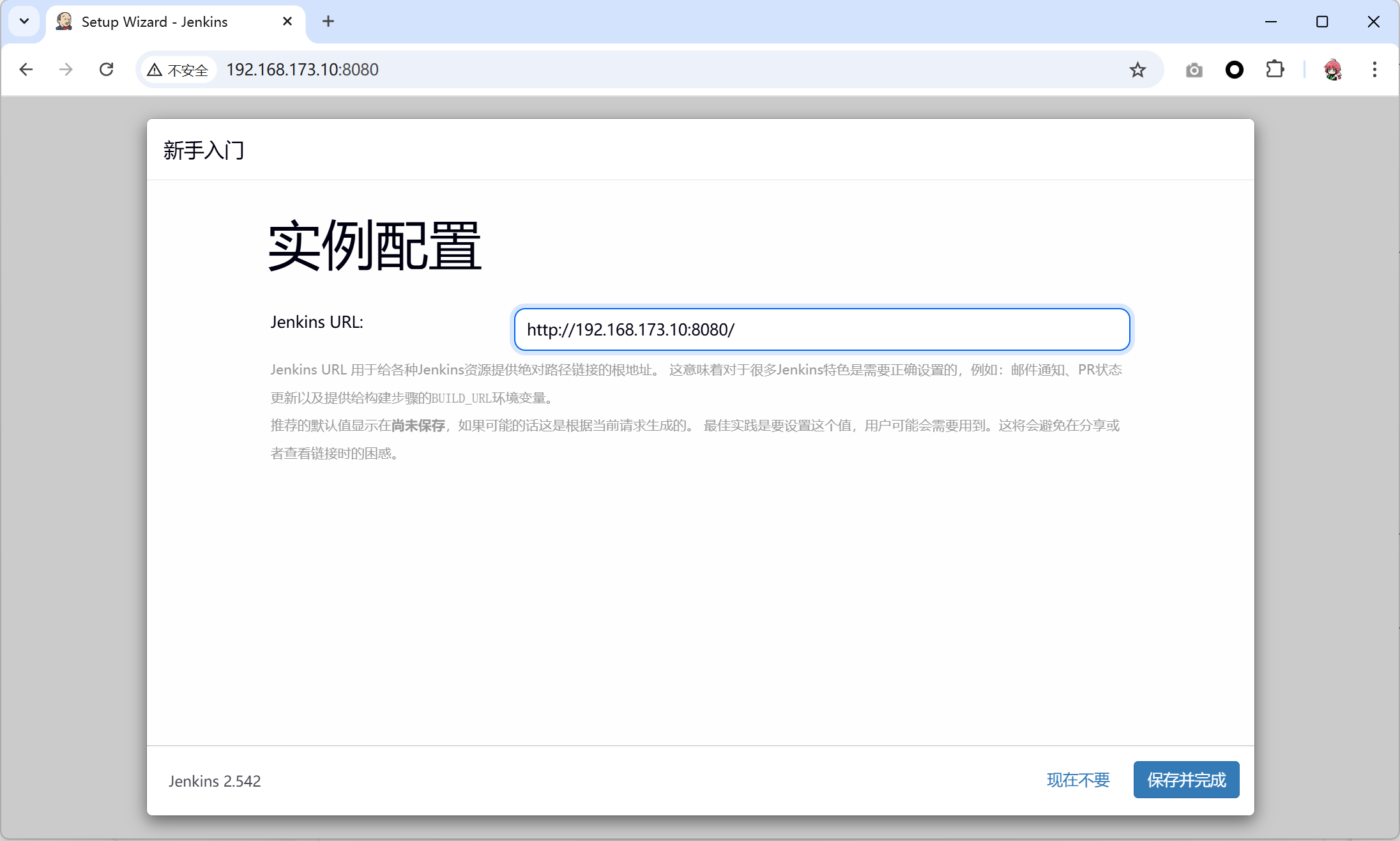

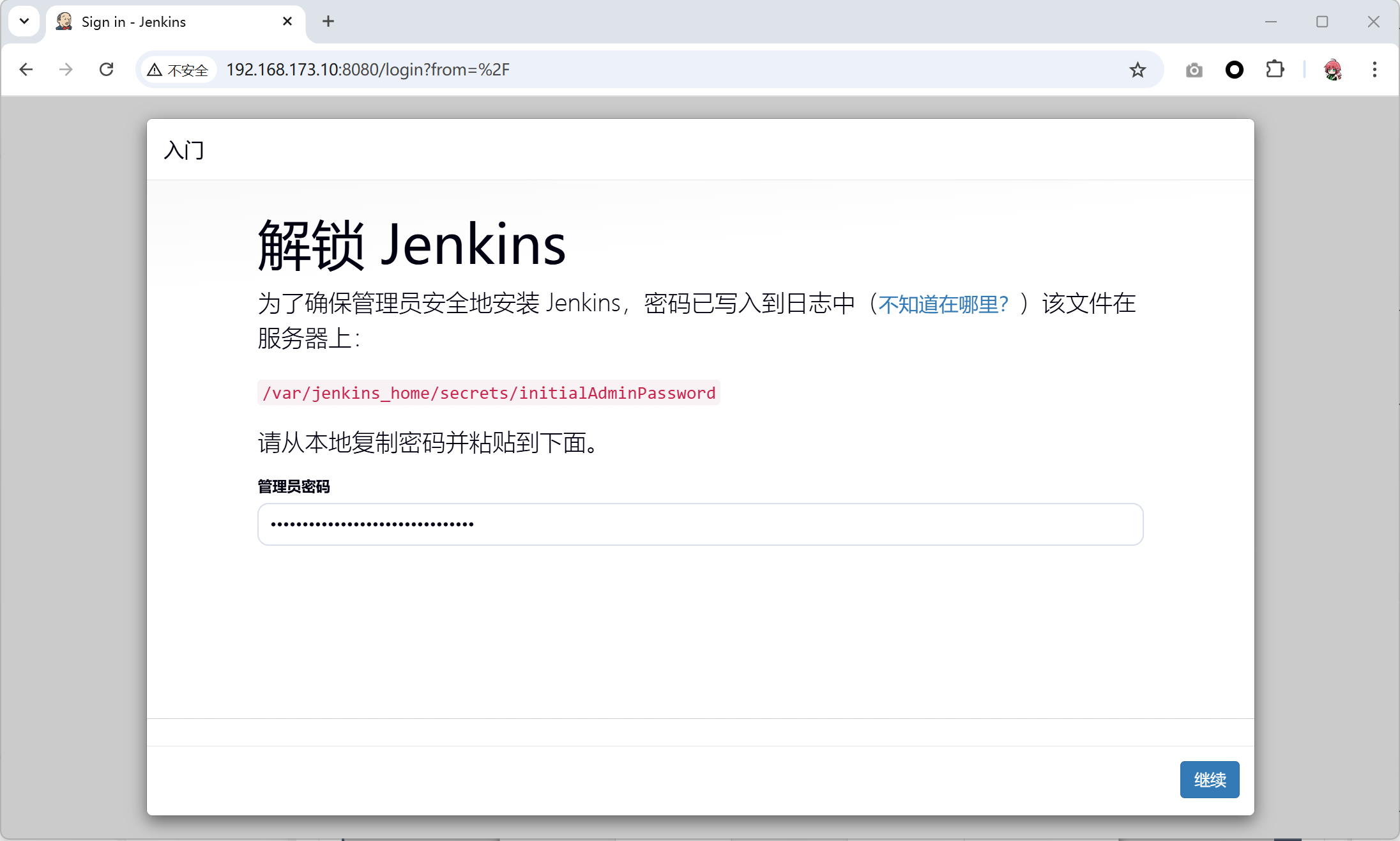

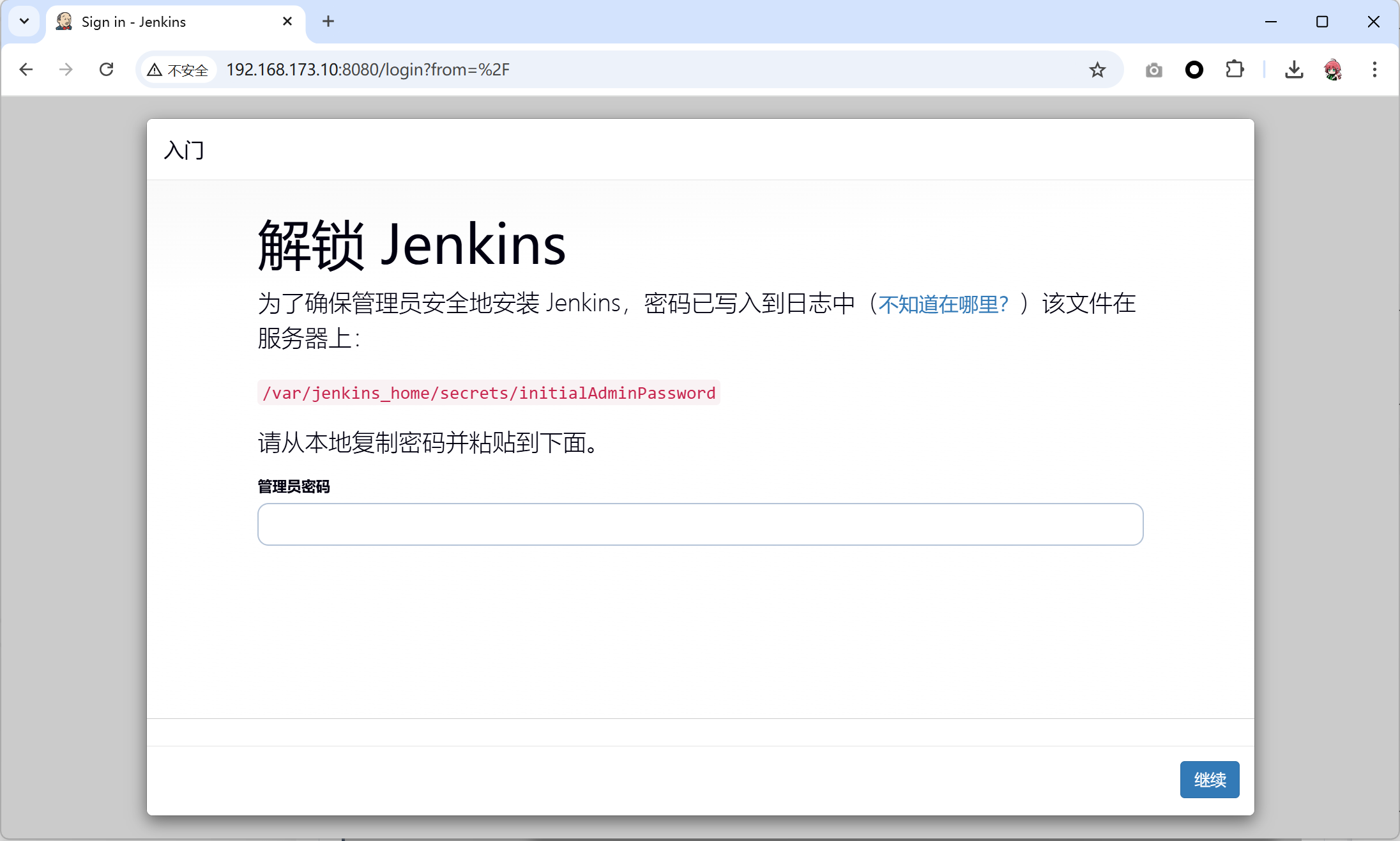

• 打开Jenkins，完成初始化

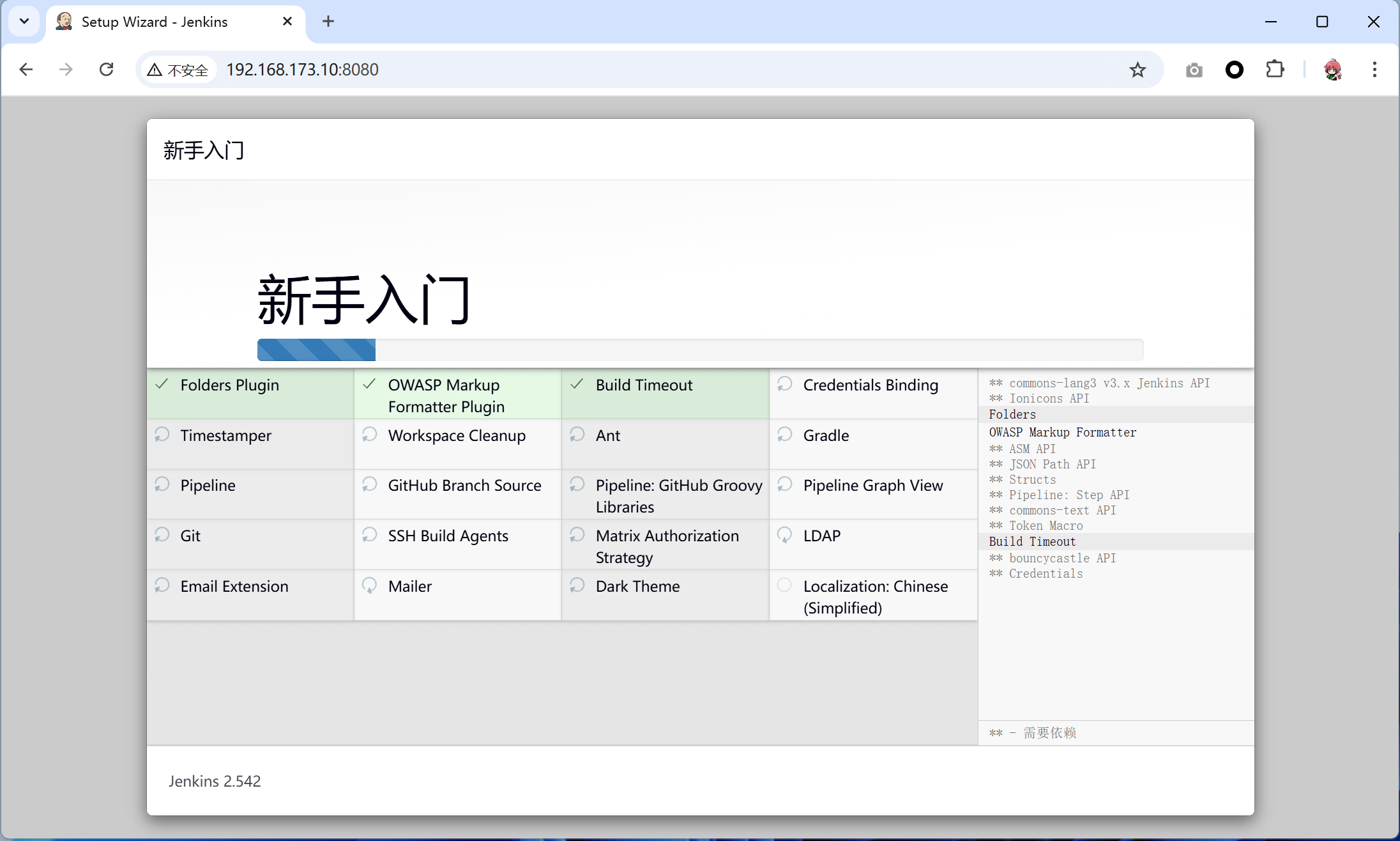

• 安装推荐的插件， 如果此处显示离线了，说明上面的Jenkins插件下载服务器失效了，可以重新找一个

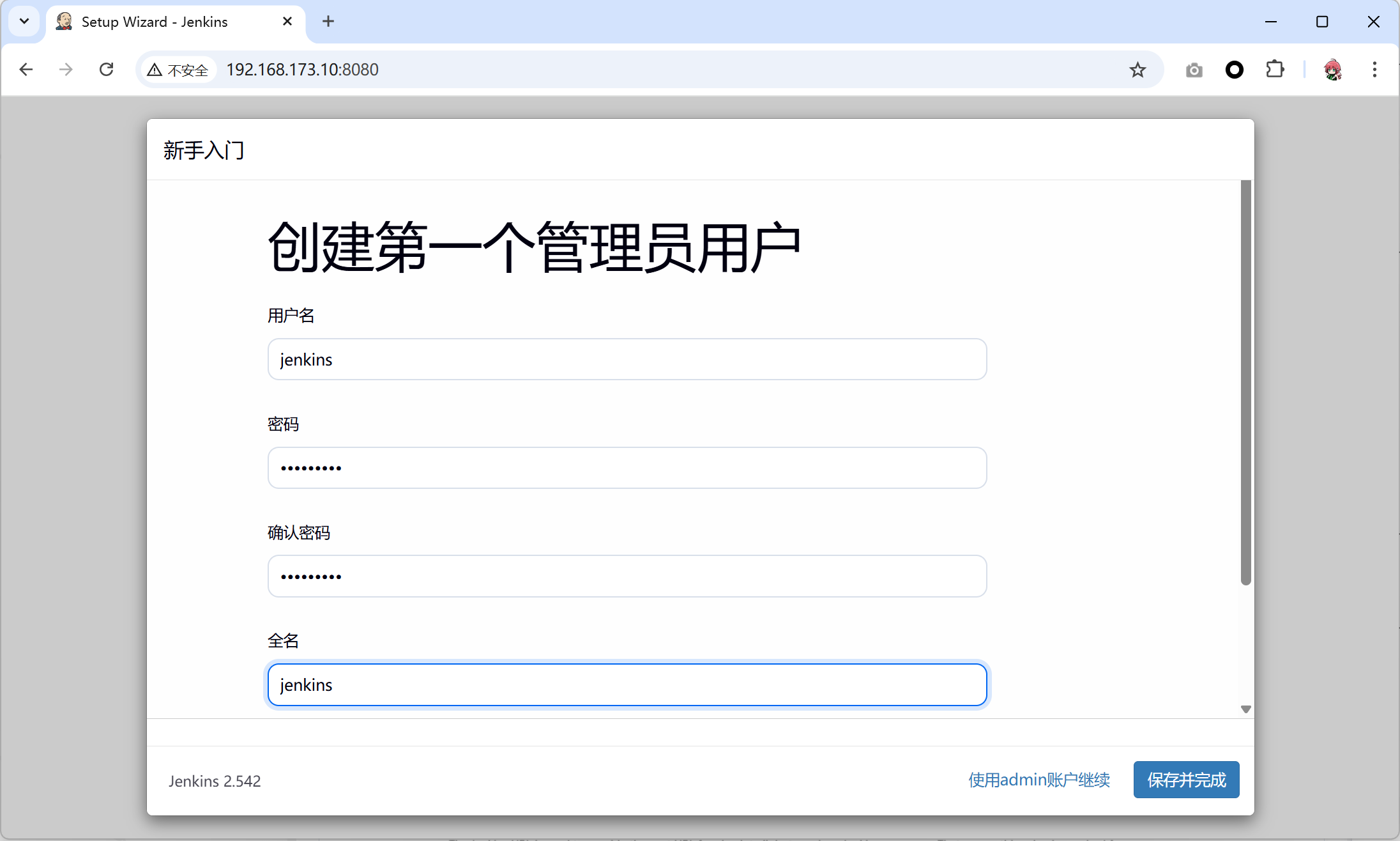

• 插件安装完成后，创建管理员用户

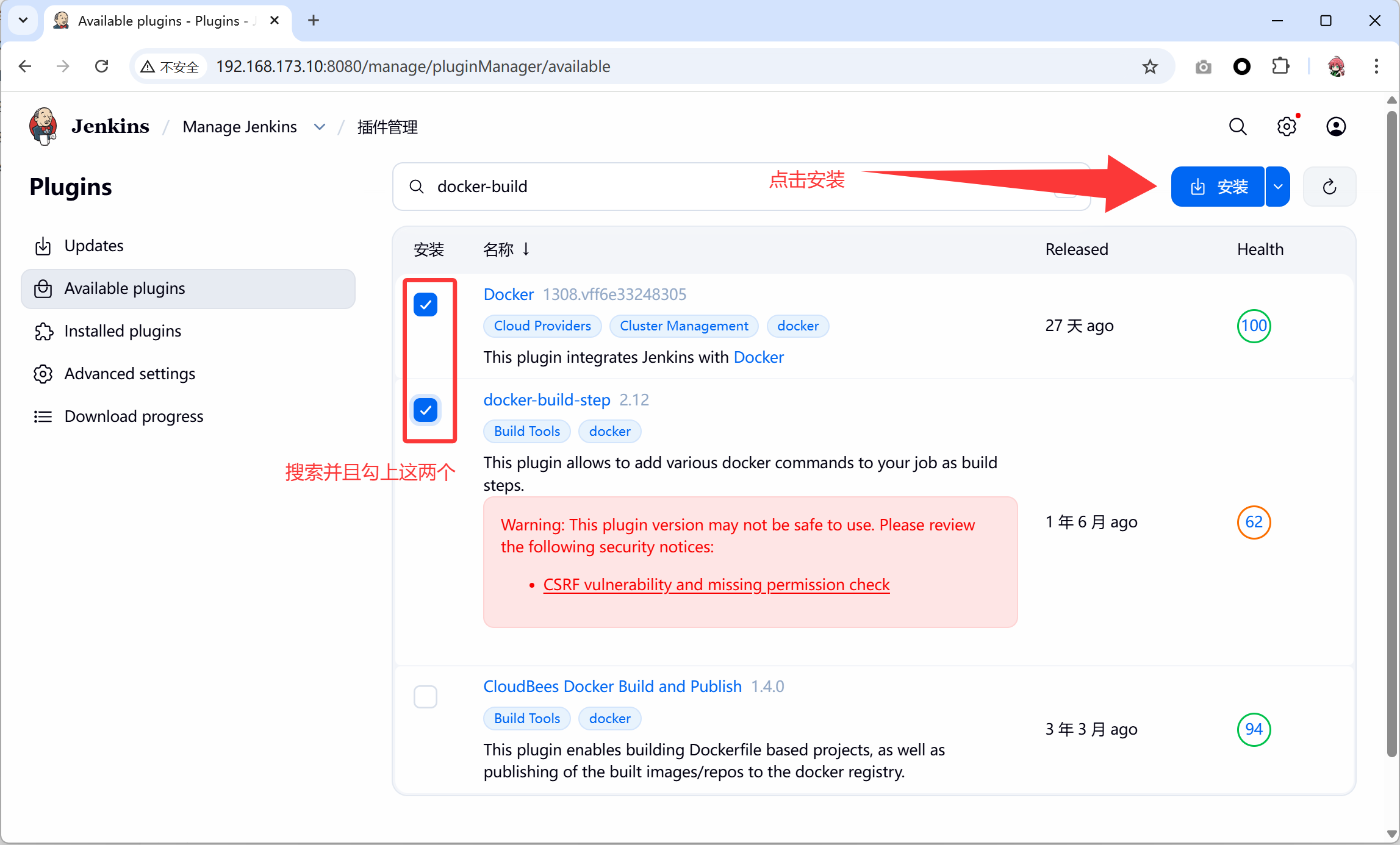

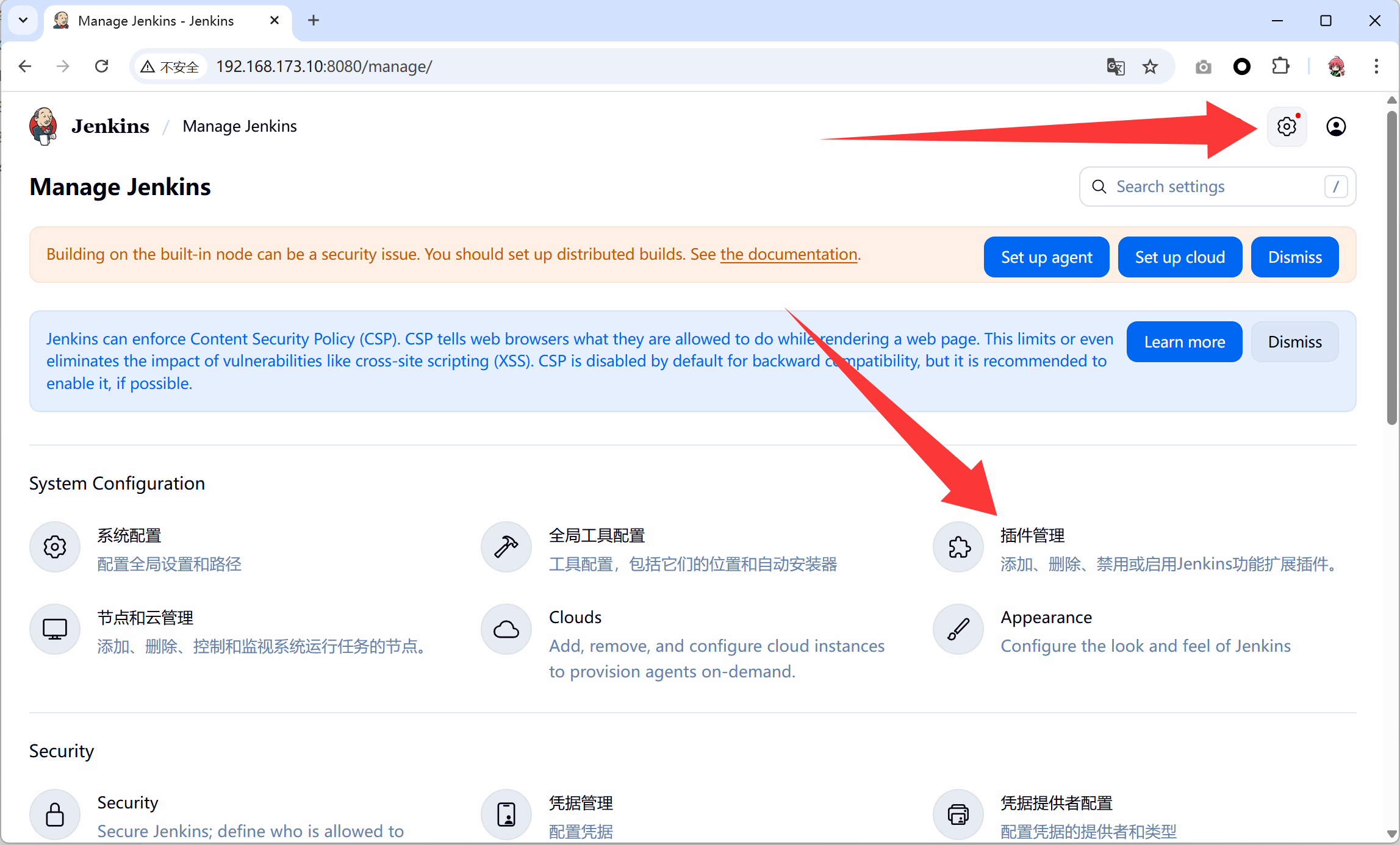

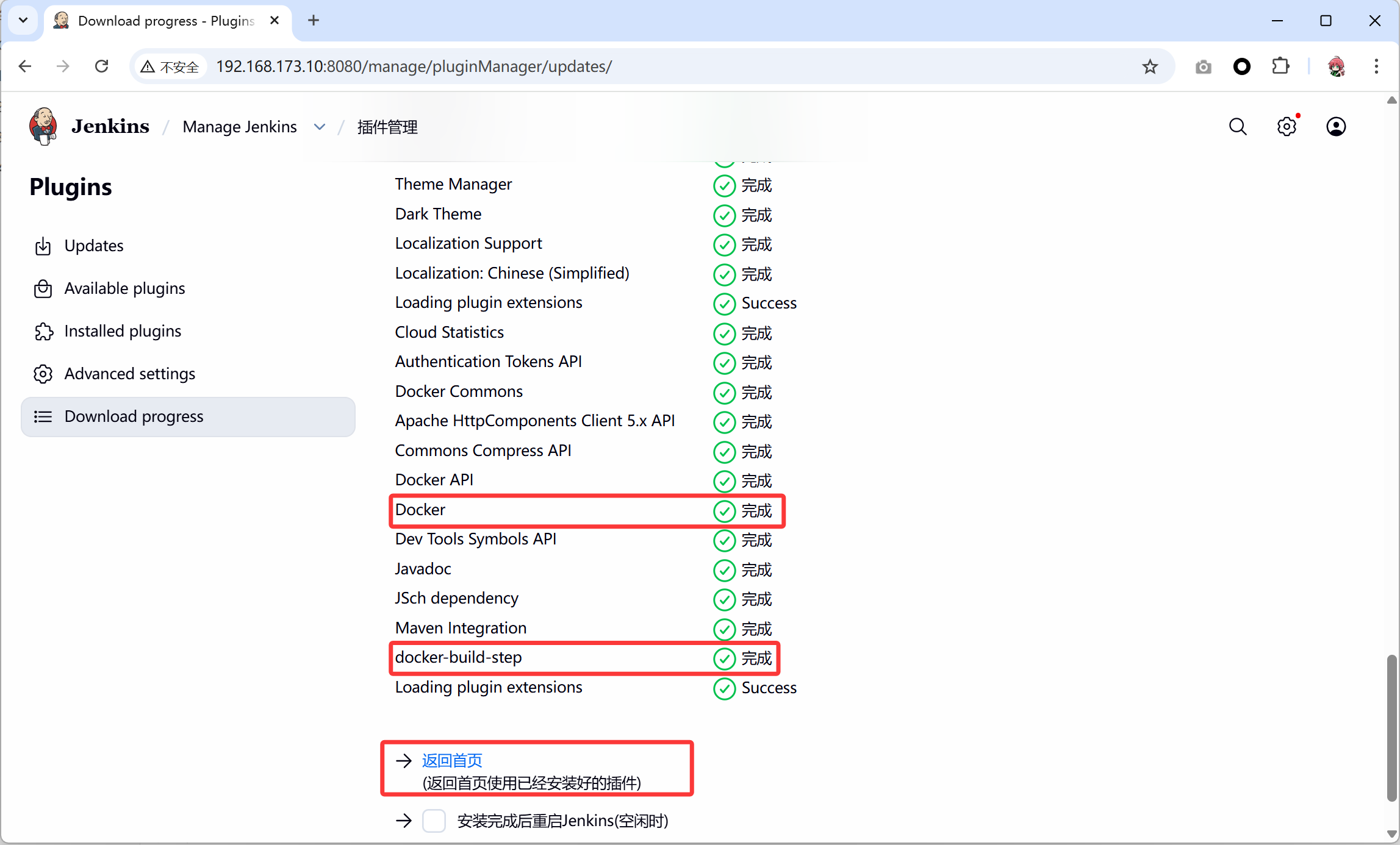

• 依次点击Manage Jenkins ->Manage Plugins ->AVAILABLE ->Search 搜索docker、docker-build-step

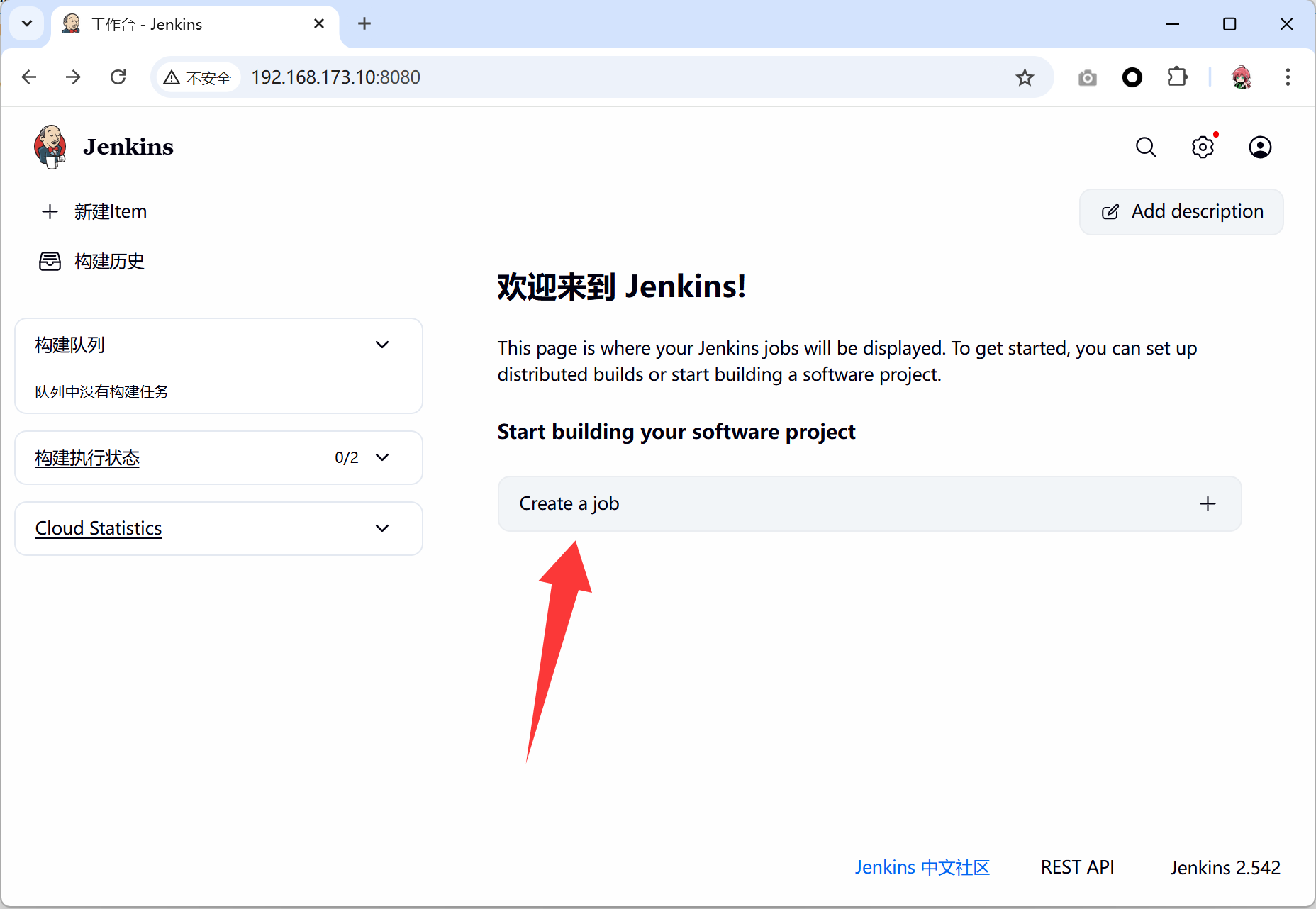

• 安装完成之后，返回主页

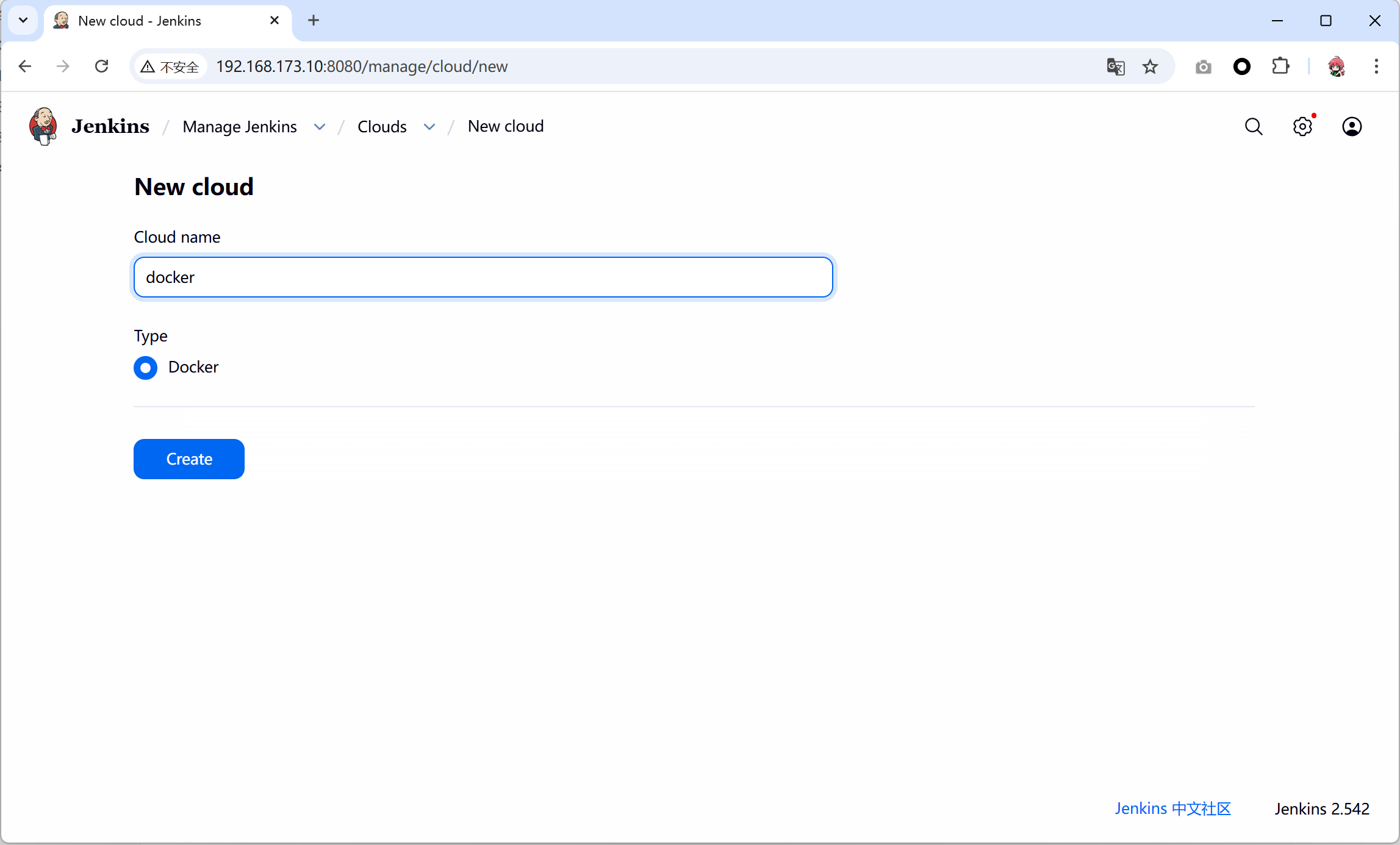

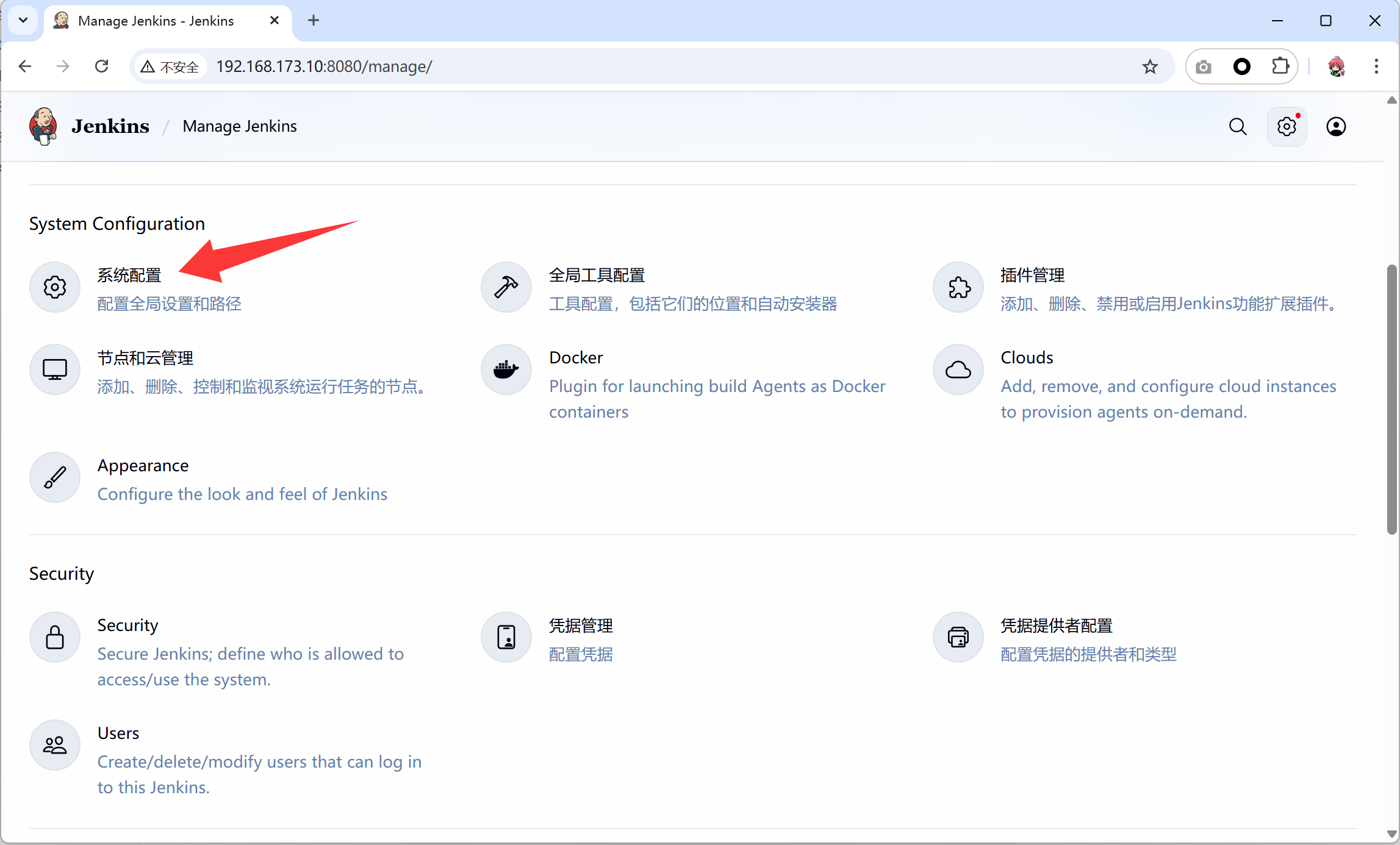

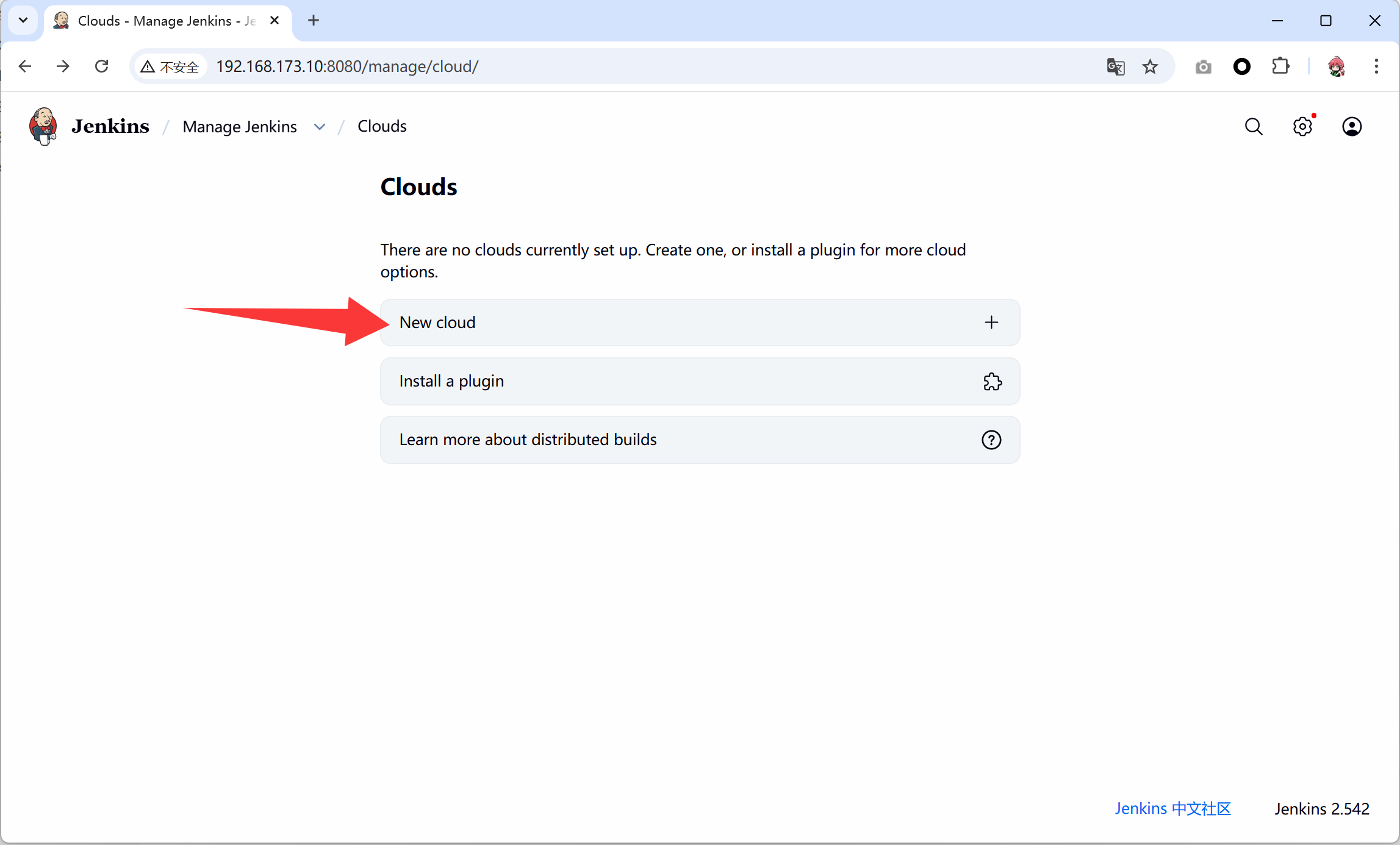

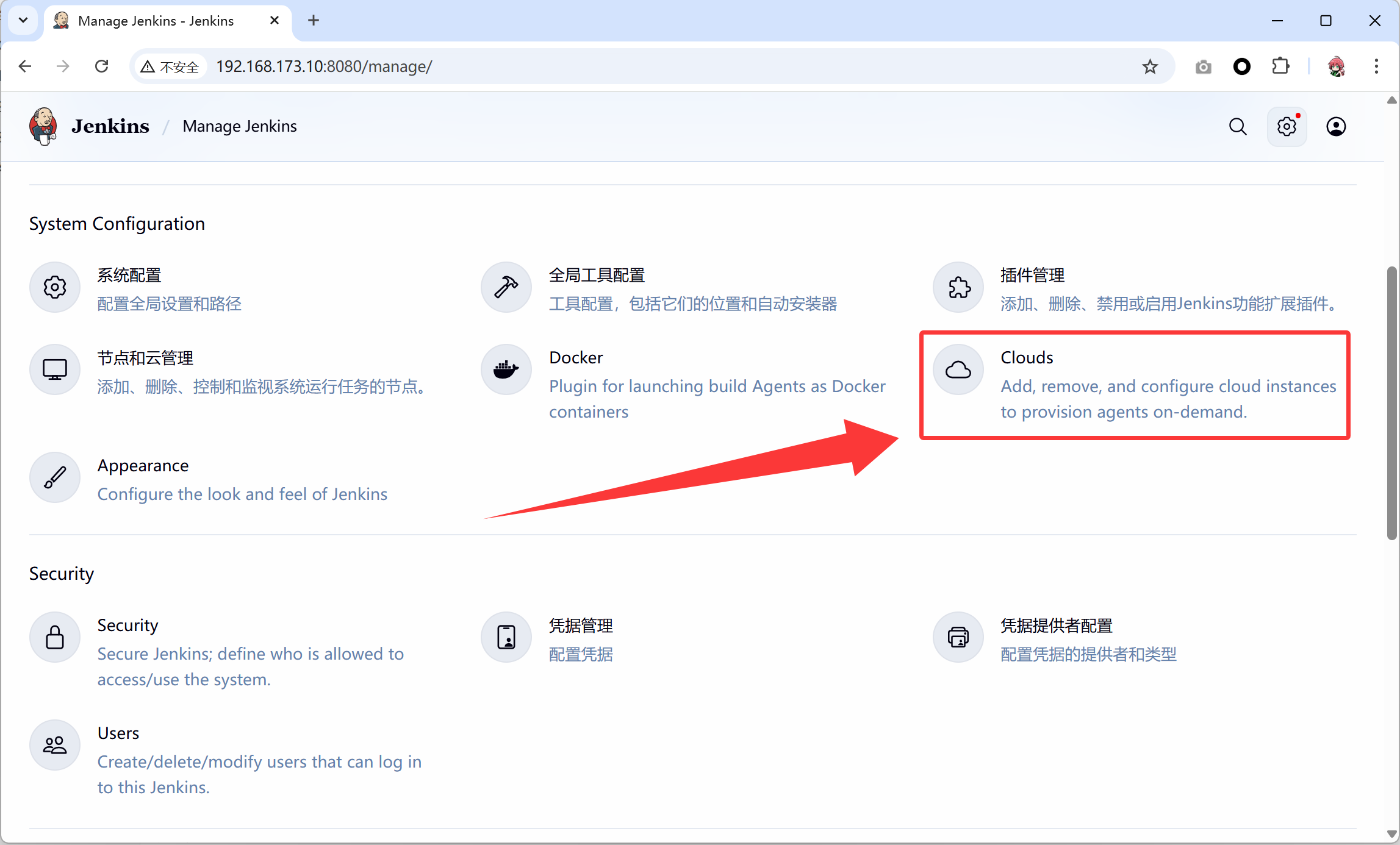

• 将docker运行的服务器添加上去

• 修改镜像库启动参数

[root@harbor ~]# cat /lib/systemd/system/docker.service |grep -Ev "^#|^$"
.......
ExecStart=/usr/bin/dockerd -H tcp://0.0.0.0:2376 -H fd:// --containerd=/run/containerd/containerd.sock
.......
[root@harbor ~]# systemctl daemon-reload
[root@harbor ~]# systemctl restart docker

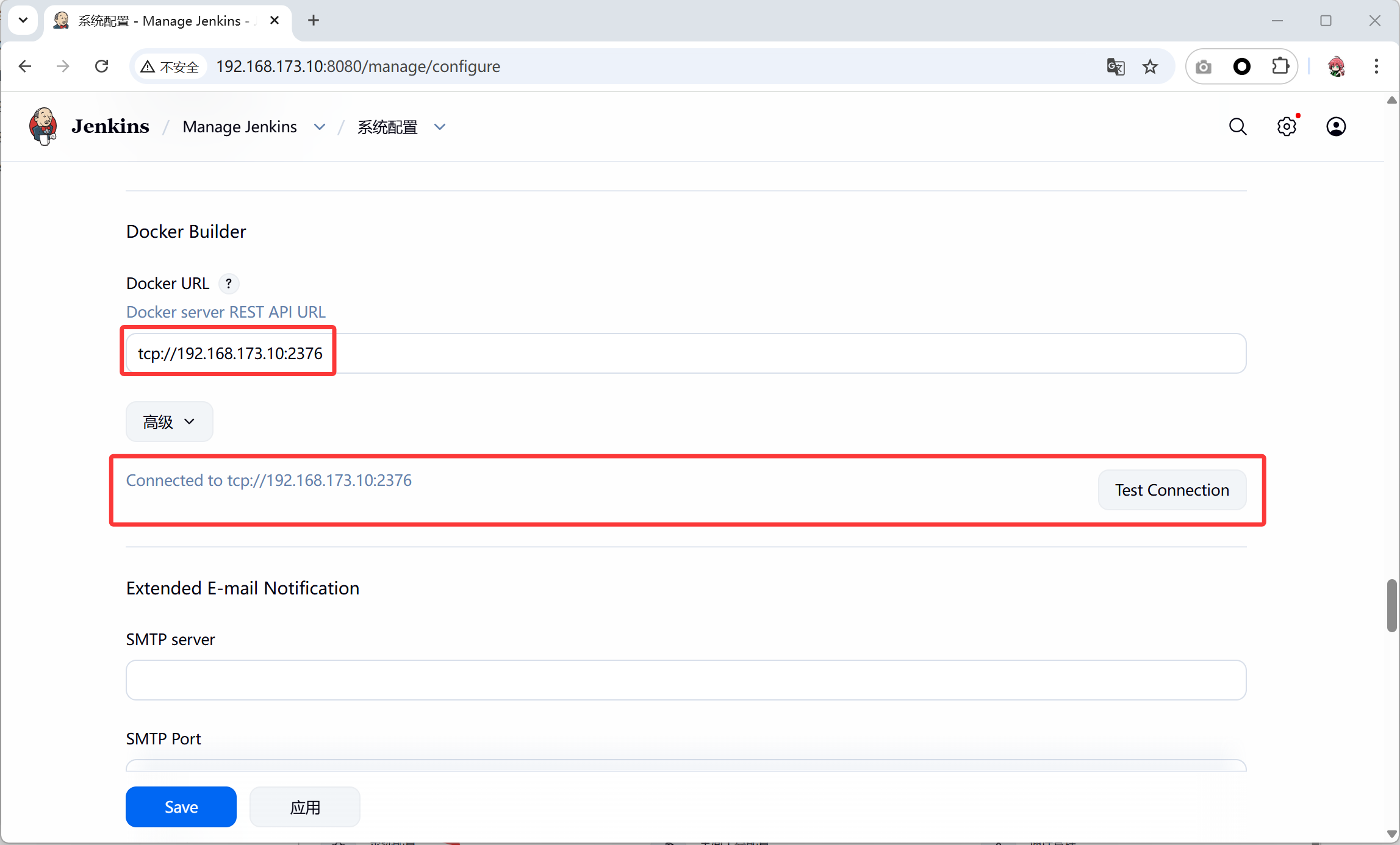

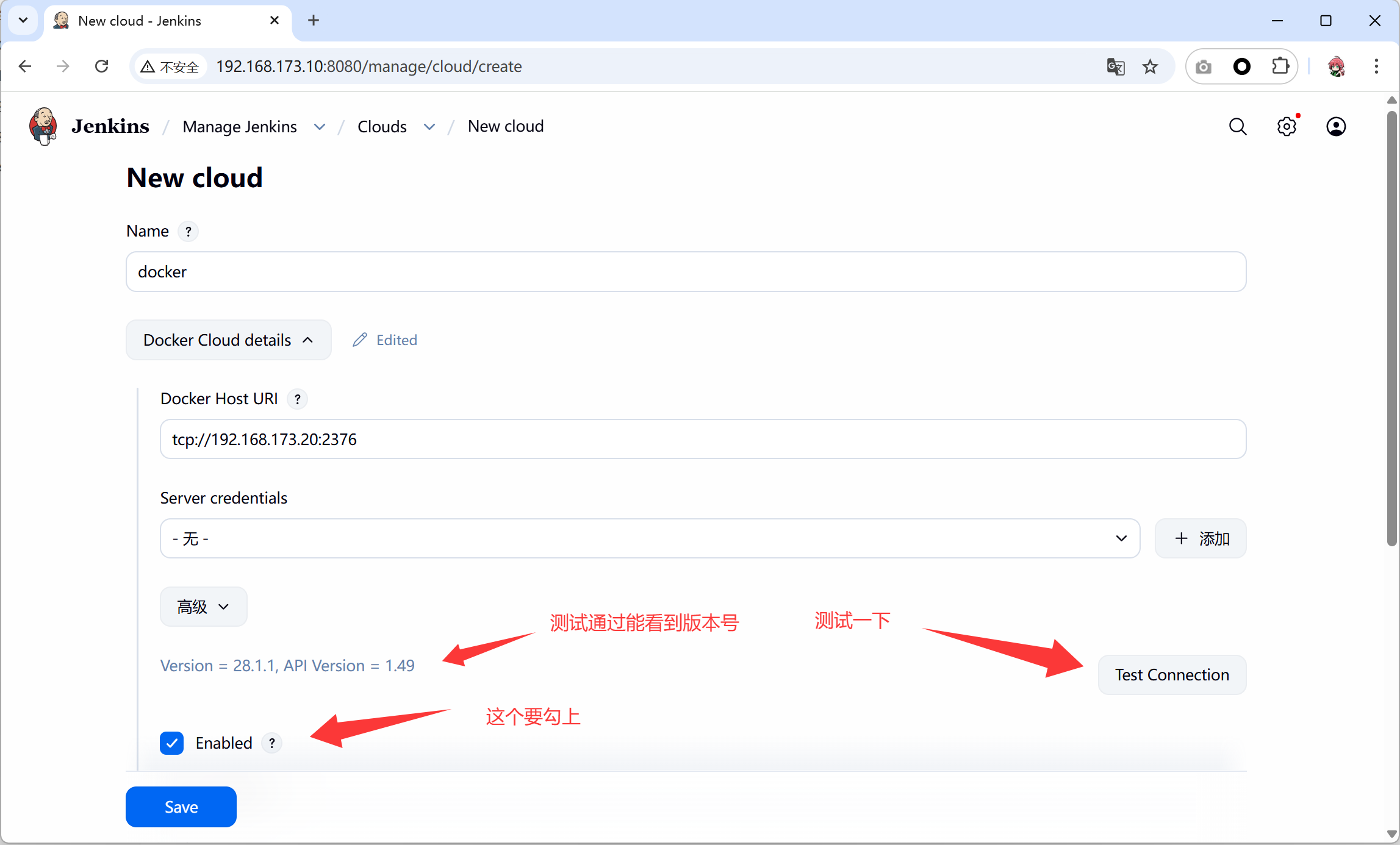

• 填写docker的参数

• 将构建docker的服务器也关联上去

• jenkins 安全设置

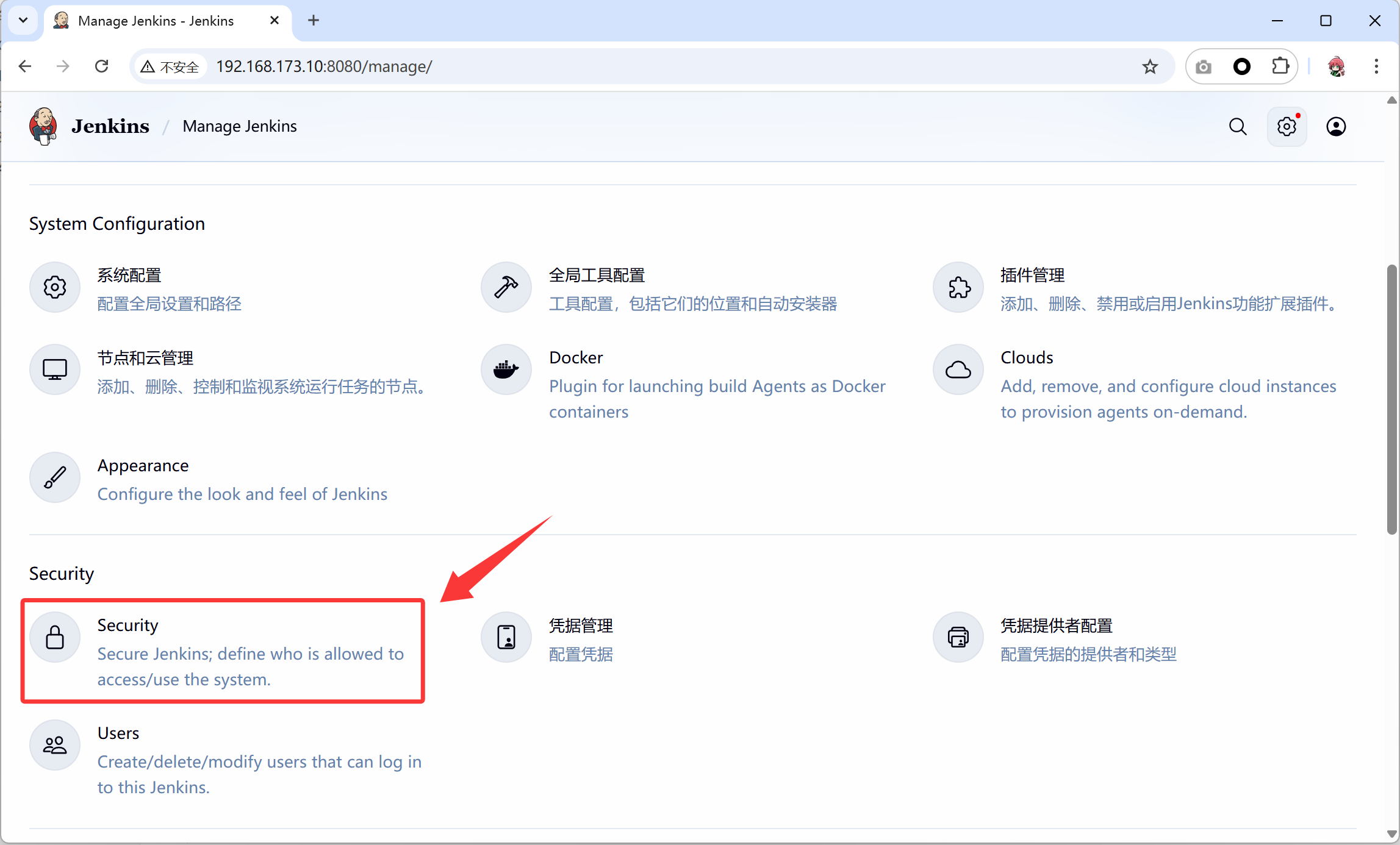

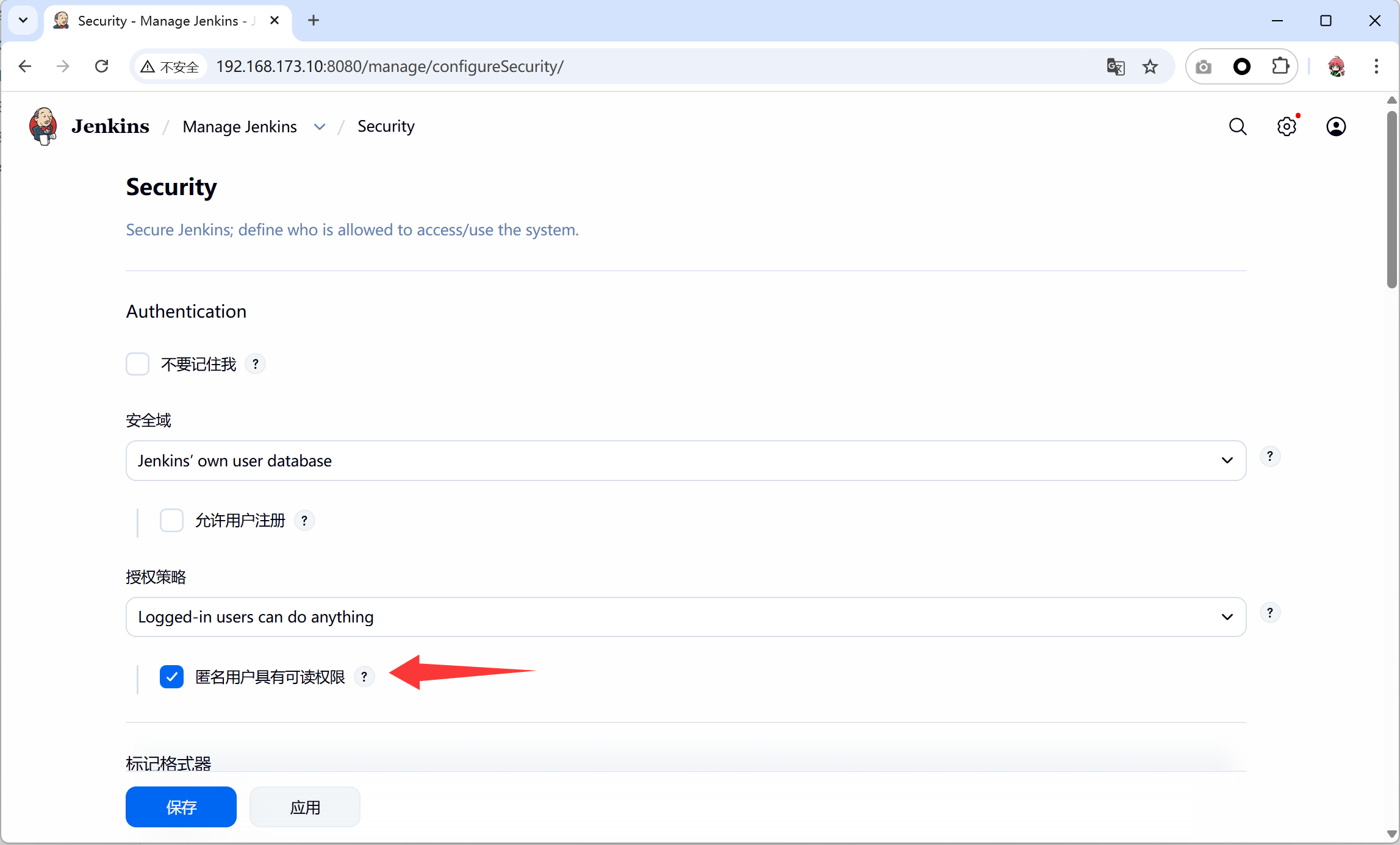

• 后面 gitlab 要和 jenkins 进行联动，所以必须要需要对 jenkins 的安全做一些设置，依次点击 系统管理-全局安全配置-授权策略，勾选”匿名用户具有可读权限”

• 添加 JVM 运行参数 -Dhudson.security.csrf.GlobalCrumbIssuerConfiguration.DISABLE_CSRF_PROTECTION=true 运行跨站请求访问

[root@jenkins ~]# docker exec -u root -it jenkins bash
root@cf6baf3b3ba5:/# sed -i 's/exec java/exec java -Dhudson.security.csrf.GlobalCrumbIssuerConfiguration.DISABLE_CSRF_PROTECTION=true/' /usr/local/bin/jenkins.sh
root@cf6baf3b3ba5:/# cat /usr/local/bin/jenkins.sh |grep 'exec java'
root@cf6baf3b3ba5:/# exit

• 下载kubectl客户端工具
  • 这里的话我们要通过jenkins上的kubectl客户端连接k8s,所以我们需要安装一个k8s的客户端kubectl，下载k8s客户端

# 此处使用安装kubernetes的kubectl方式安装即可，此处只用到客户端功能
[root@jenkins ~]# systemctl enable kubelet && systemctl start kubelet
[root@jenkins ~]# kubectl version --client=true
Client Version: v1.29.2
Kustomize Version: v5.0.4-0.20230601165947-6ce0bf390ce3

• 然后拷贝kubeconfig 证书,k8s集群(一主两从)中查看证书位置/etc/kubernetes/admin.conf

[root@jenkins ~]# scp root@node01:/etc/kubernetes/admin.conf .
The authenticity of host 'node01 (192.168.173.30)' can't be established.
ED25519 key fingerprint is SHA256:DnvMlpn/LVtTpk8VRIPsOGjoYWW8AICLR23S5E2jKFA.
This key is not known by any other names
Are you sure you want to continue connecting (yes/no/[fingerprint])? yes
Warning: Permanently added 'node01' (ED25519) to the list of known hosts.
root@node01's password:
admin.conf                                                                                100% 5658     1.1MB/s   00:00

• 拷贝证书和k8s集群客户端工具到jenkins容器内

[root@jenkins ~]# docker cp admin.conf jenkins:/
Successfully copied 7.68kB to jenkins:/
[root@jenkins ~]# docker cp /usr/bin/kubectl jenkins:/usr/bin/
Successfully copied 49.7MB to jenkins:/usr/bin/

• kubectl命令测试，赋予jenkins用户对/admin.conf的权限

[root@jenkins ~]# docker exec -u root -it jenkins bash
root@cf6baf3b3ba5:/# chown jenkins:jenkins /admin.conf
root@cf6baf3b3ba5:/# exit
exit
[root@jenkins ~]# docker exec -it jenkins bash
jenkins@cf6baf3b3ba5:/$ kubectl --kubeconfig=/admin.conf get nodes
NAME     STATUS   ROLES           AGE     VERSION
node01   Ready    control-plane   4d18h   v1.29.2
node02   Ready    <none>          4d18h   v1.29.2
node03   Ready    <none>          4d18h   v1.29.2

3. hexo系统CICD实战

3.1 配置hexo高可用

• 要部署Nginx来运行hexo博客系统，hexo编译完后为一堆静态文件，所以我们需要创建一个svc和一个deploy，使用SVC提供服务，使用deploy提供服务能力,使用Nginx+hexo的静态文件构成的镜像

[root@jenkins ~]# mkdir /jenkins/kubernetes
[root@jenkins ~]# cd /jenkins/kubernetes
[root@jenkins kubernetes]# vim nginx.yaml

• nginx.yaml文件

apiVersion: apps/v1
kind: Deployment
metadata:
  creationTimestamp: null
  labels:
    app: nginx
  name: nginxdep
spec:
  replicas: 2
  selector:
    matchLabels:
      app: nginx
  strategy: {}
  template:
    metadata:
      creationTimestamp: null
      labels:
        app: nginx
    spec:
      containers:
      - image: nginx
        name: web
        resources:
          requests:
            cpu: 100m
      restartPolicy: Always

• 将nginx部署

[root@jenkins ~]# docker exec -it -u root jenkins bash
root@cf6baf3b3ba5:/# cd /var/jenkins_home/kubernetes/
root@cf6baf3b3ba5:/var/jenkins_home/kubernetes# kubectl apply -f nginx.yaml --kubeconfig=/admin.conf
root@cf6baf3b3ba5:/var/jenkins_home/kubernetes# kubectl --kubeconfig=/admin.conf get pods
NAME                        READY   STATUS    RESTARTS   AGE
nginxdep-7dc8c7dc56-kxvxl   1/1     Running   0          44s
nginxdep-7dc8c7dc56-qqfzc   1/1     Running   0          44s
root@cf6baf3b3ba5:/var/jenkins_home/kubernetes# kubectl --kubeconfig=/admin.conf get deploy
NAME       READY   UP-TO-DATE   AVAILABLE   AGE
nginxdep   2/2     2            2           7m59s

• service创建

root@cf6baf3b3ba5:/var/jenkins_home/kubernetes# kubectl --kubeconfig=/admin.conf expose deploy nginxdep --port=8888 --target-port=80 --type=NodePort
service/nginxdep exposed
root@cf6baf3b3ba5:/var/jenkins_home/kubernetes# kubectl --kubeconfig=/admin.conf get svc
NAME         TYPE        CLUSTER-IP   EXTERNAL-IP   PORT(S)          AGE
kubernetes   ClusterIP   10.0.0.1     <none>        443/TCP          2d20h
nginxdep     NodePort    10.6.216.0   <none>        8888:31446/TCP   81s

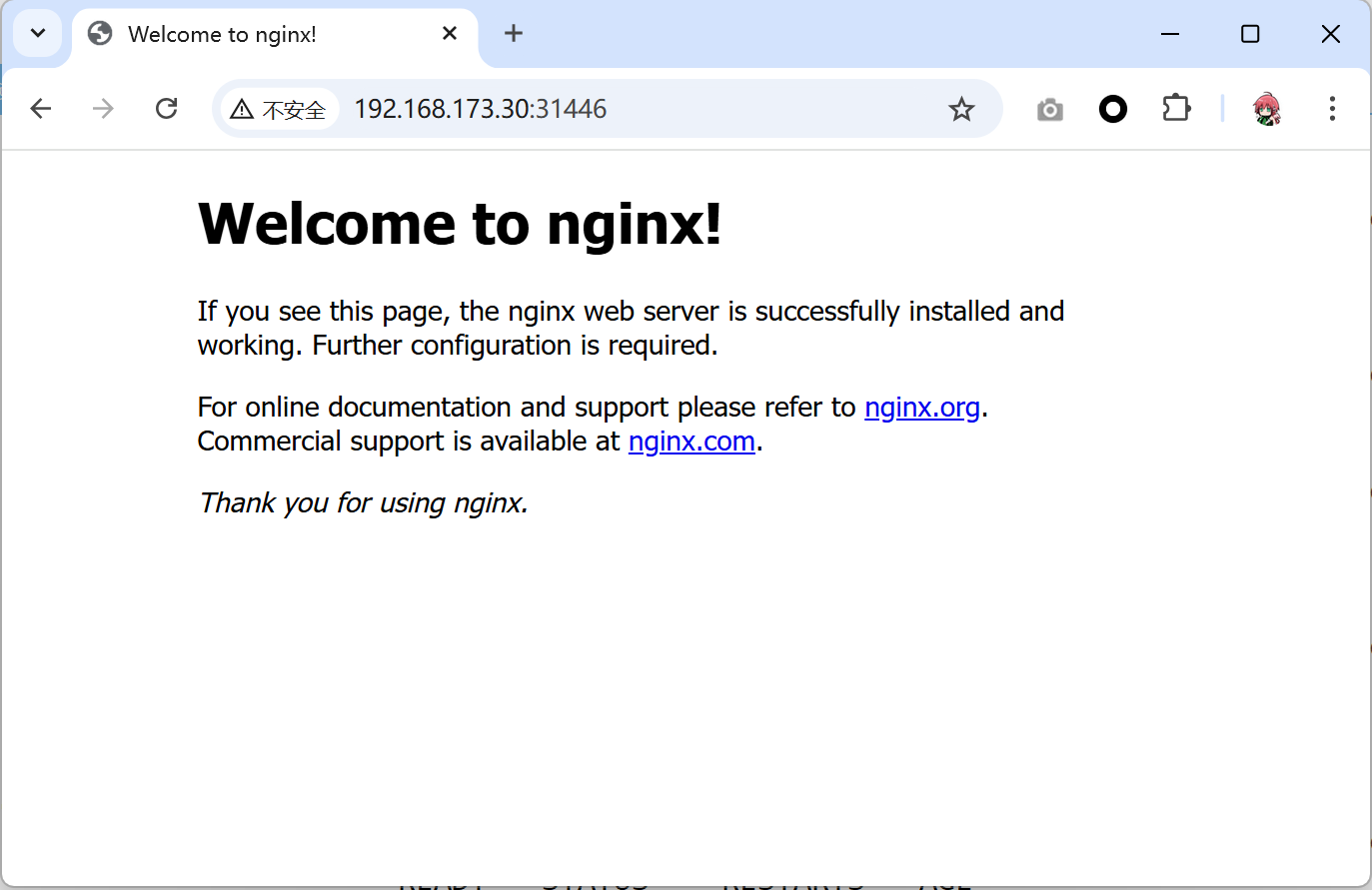

• 访问测试

3.2 集群配置私仓地址

• 通过kubectl set命令更新deploy的镜像时，获取的镜像是通过私仓获取的，所以需要在启动参数添加私仓地址
• 需要修改三个节点，因为三个node才是需要去获取镜像的

[root@node01,02,03,harbor ~]# vim /usr/lib/systemd/system/docker.service
......
ExecStart=/usr/bin/dockerd --insecure-registry 192.168.173.20 -H fd:// --containerd=/run/containerd/containerd.sock
.....
[root@node01,02,03,harbor ~]# systemctl daemon-reload
[root@node01,02,03,harbor ~]# systemctl restart docker

3.3 jenkins配置CICD

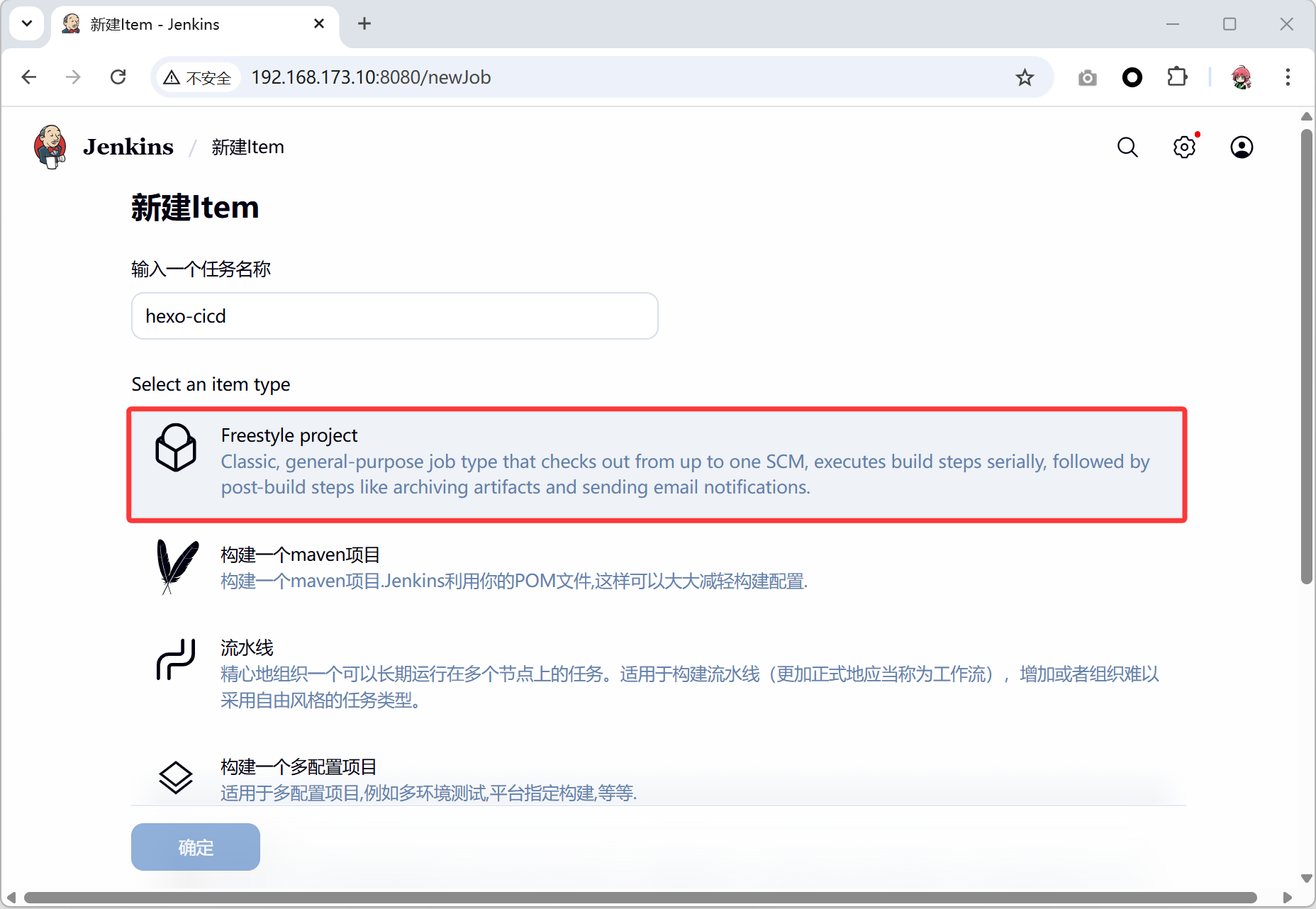

• jenkins上配置整个CICD流程，从而实现自动化

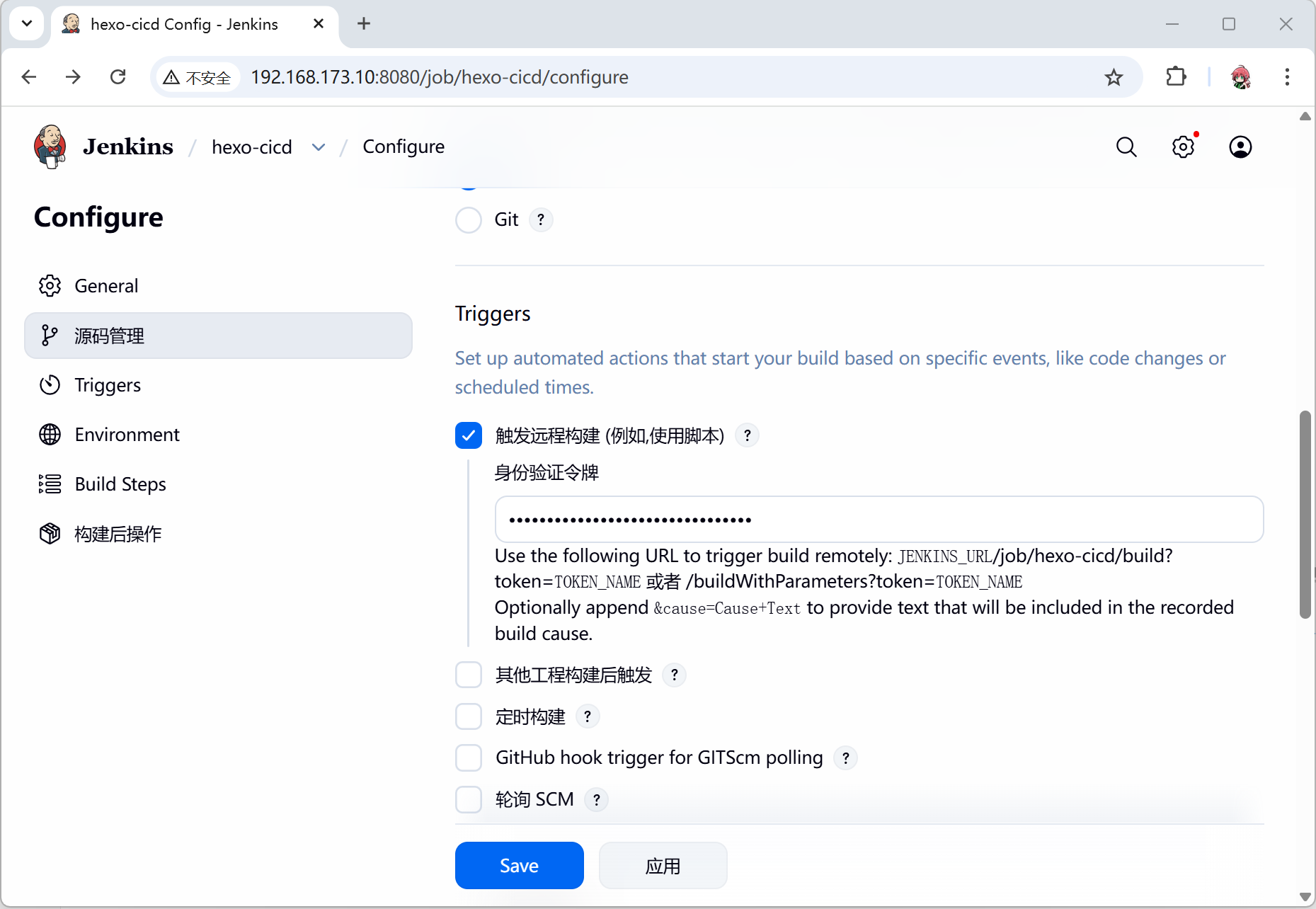

• 这里的Token为了安全，可以设置复杂一些，同时需要记住访问方式：JENKINS_URL/job/hexo-cicd/build?token=TOKEN_NAME
• 并且记录下来，不要忘记，此处我填入的是38381f8eee9f40e9a4fece7f64924d5f

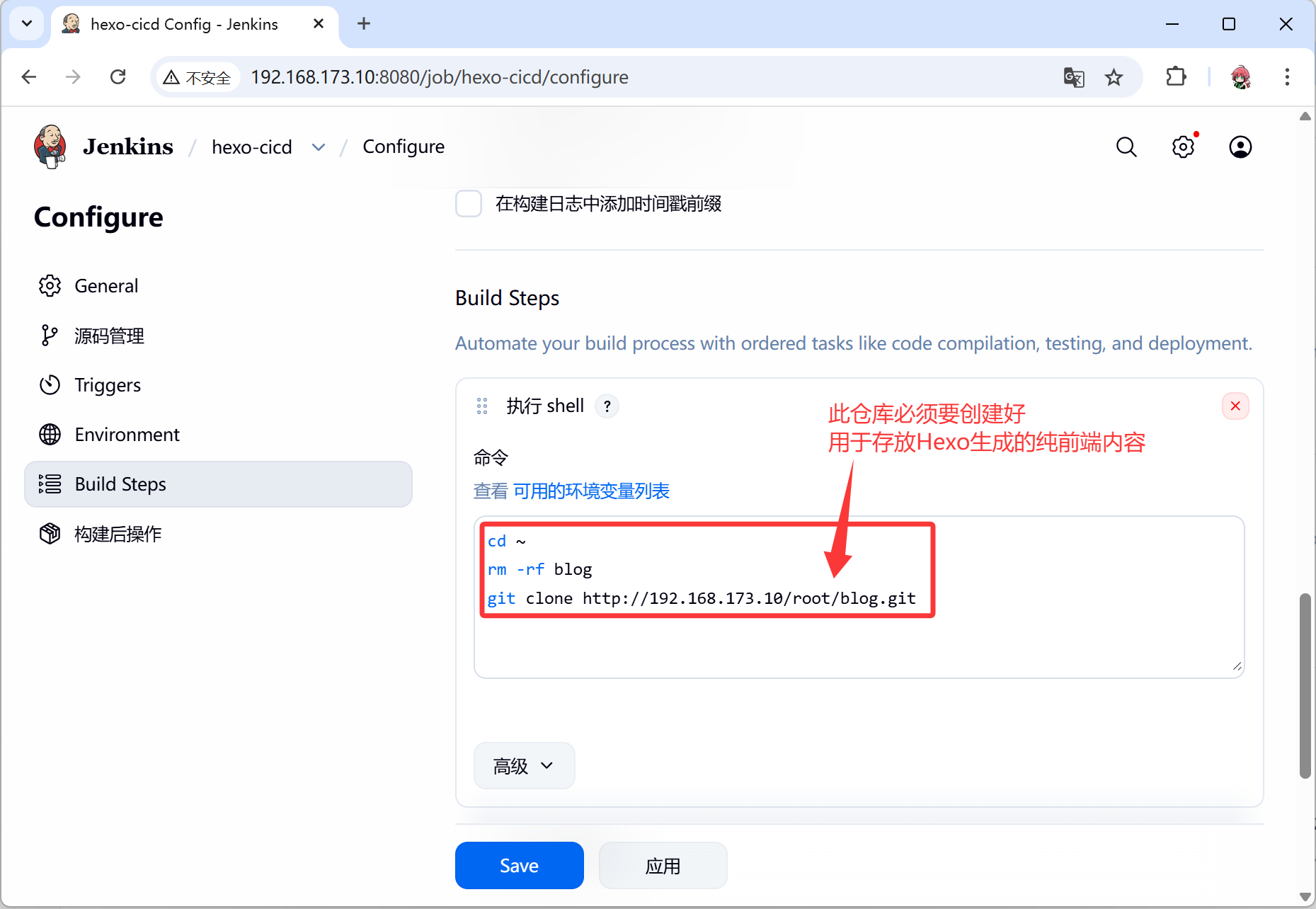

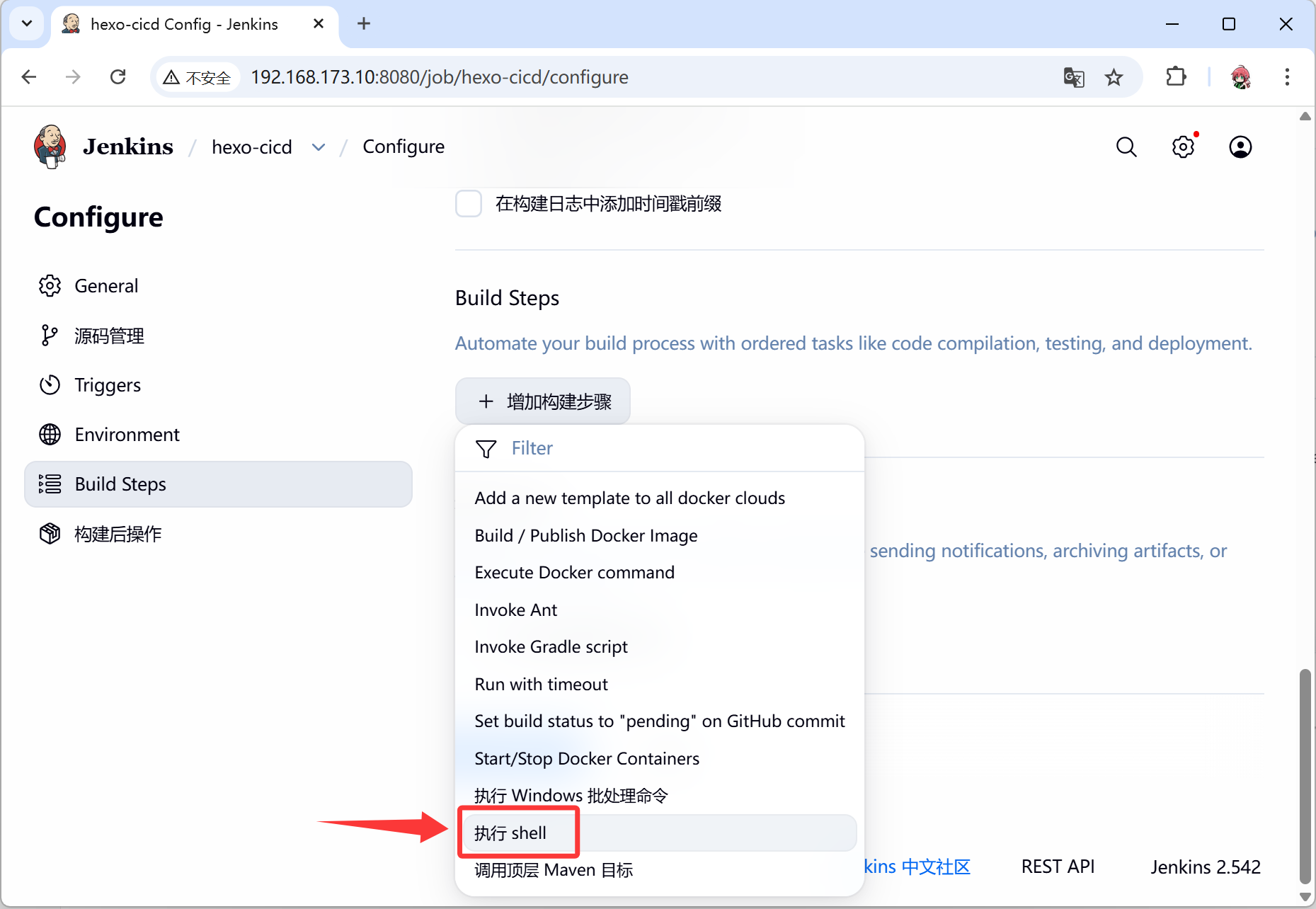

• 添加构建步骤——执行shell
  • 这一步是将新的网站源码获取到

cd ~
rm -rf blog
git clone http://192.168.173.10/root/blog.git

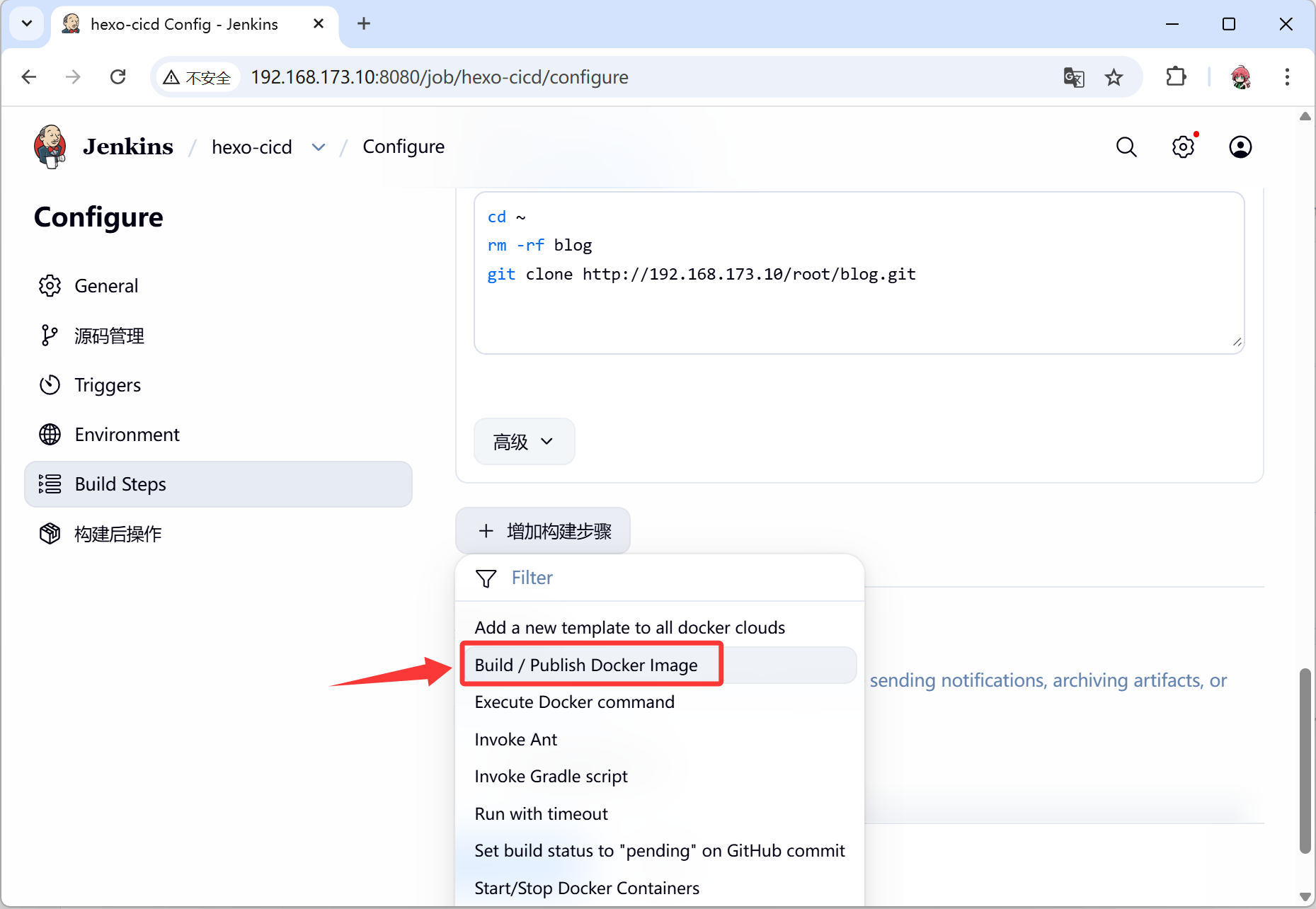

• 再次增加构建步骤

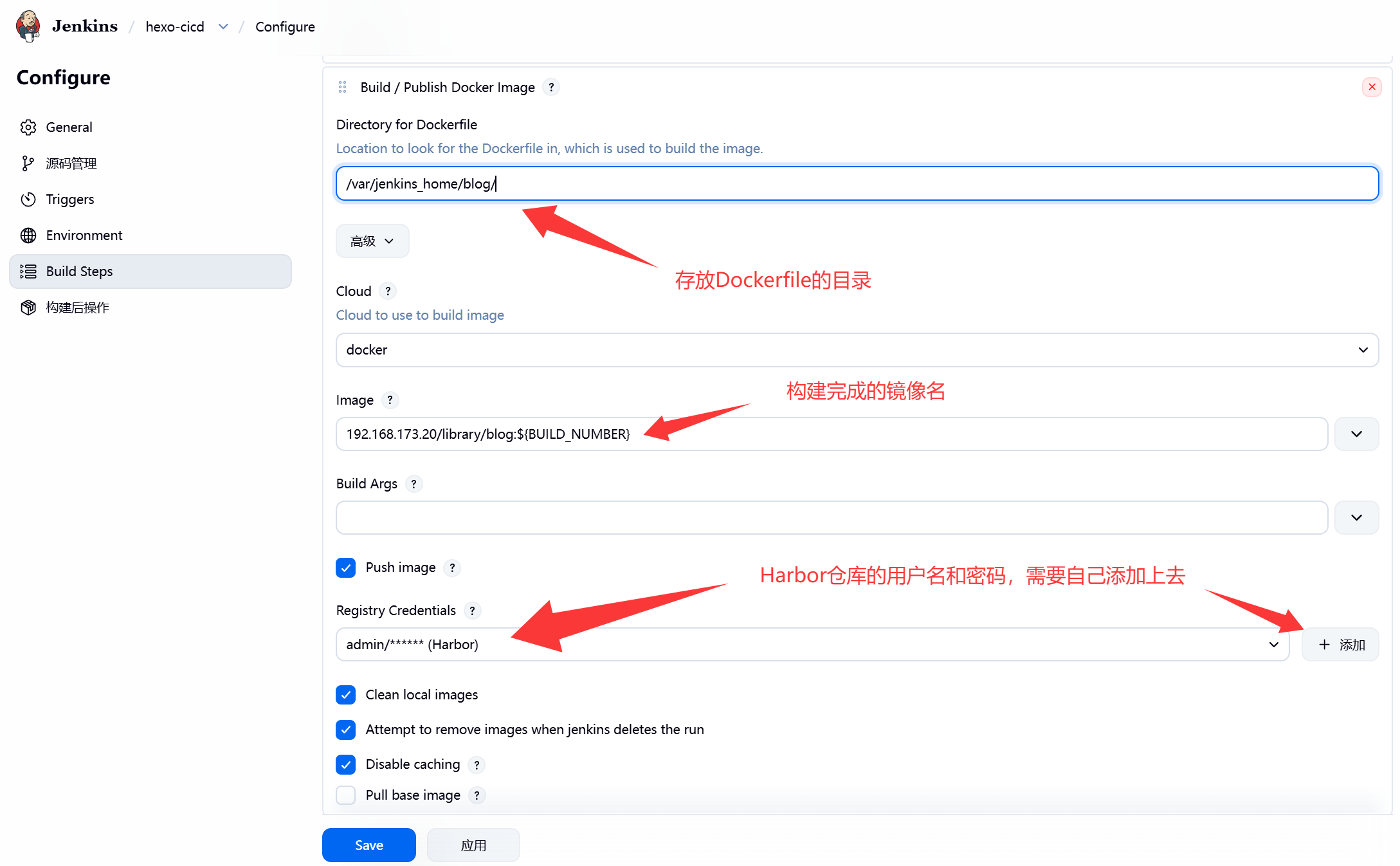

  • 这一步是将下载的源码在容器从进行处理，可以得到能够运行的容器环境
  • 本案例就是将前端代码放入nginx的网站根目录，然后构造一个新的镜像

• 再次添加构建步骤
  • 这一步是修改kubernetes集群中运行的镜像，使其更新为最新的版本

export KUBECONFIG=/kcl;
/kubectl --kubeconfig=/admin.conf set image deployment/nginxdep *="192.168.173.20/library/blog:${BUILD_NUMBER}"

3.4 Hexo仓库配置

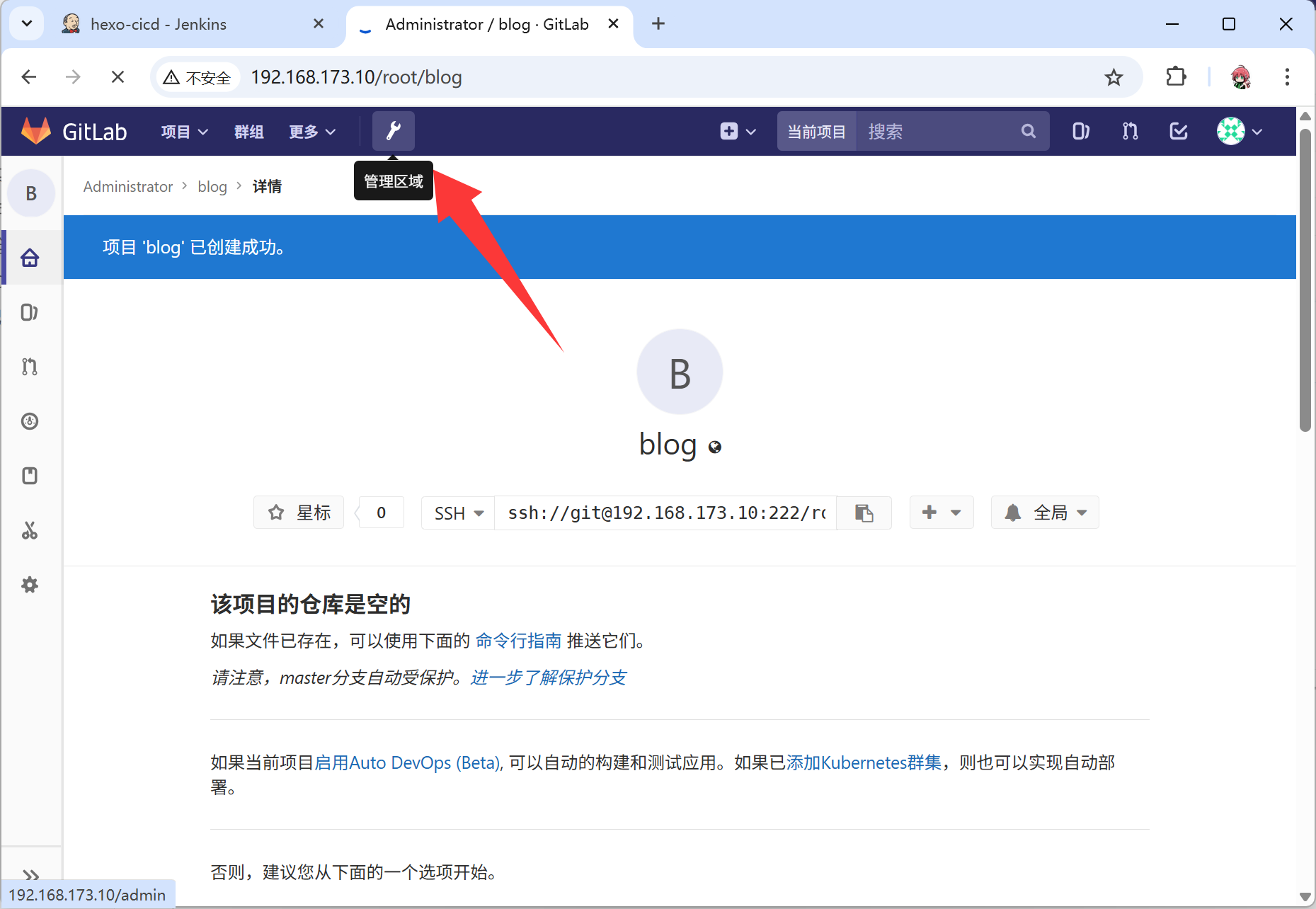

• 新建blog仓库

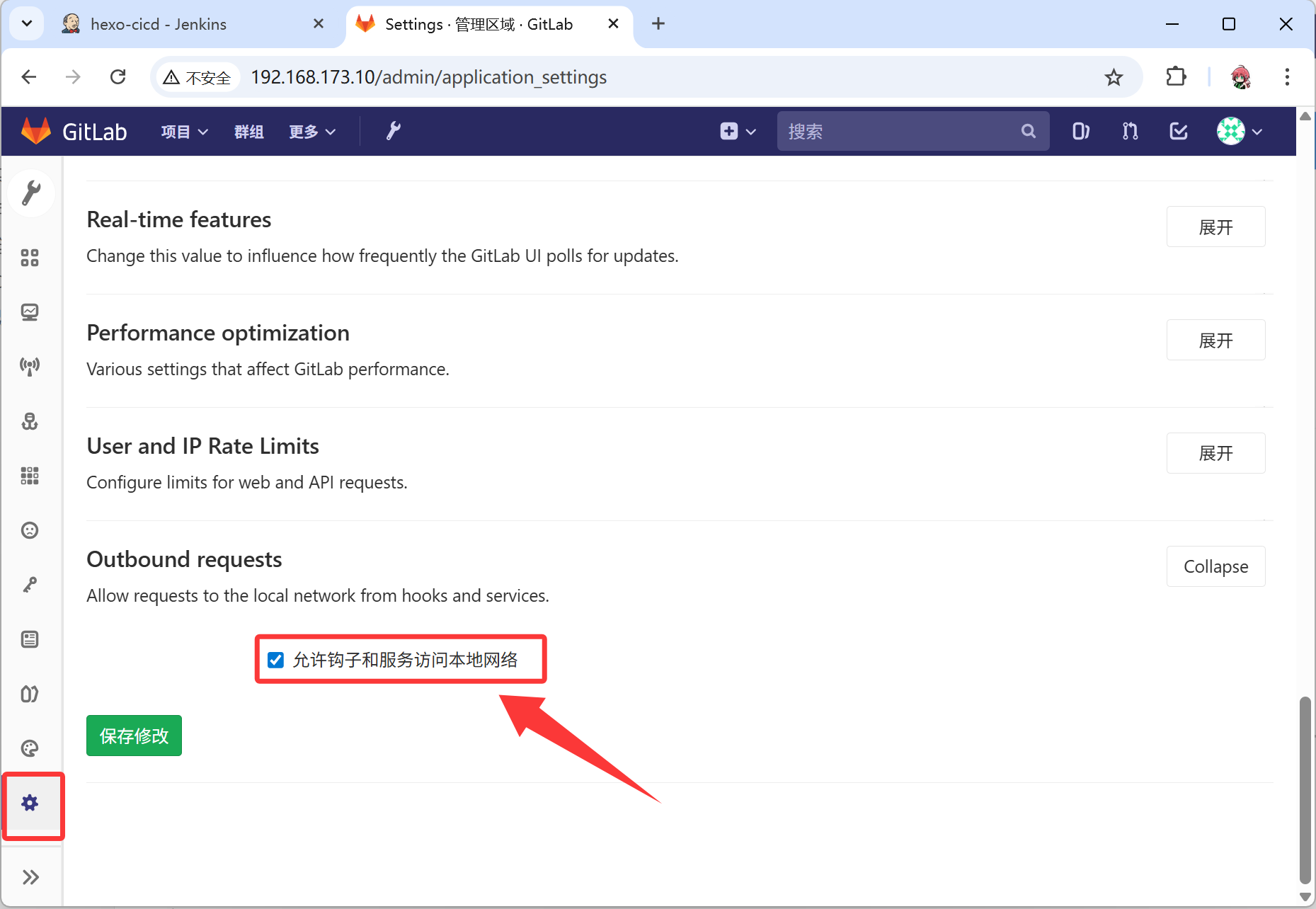

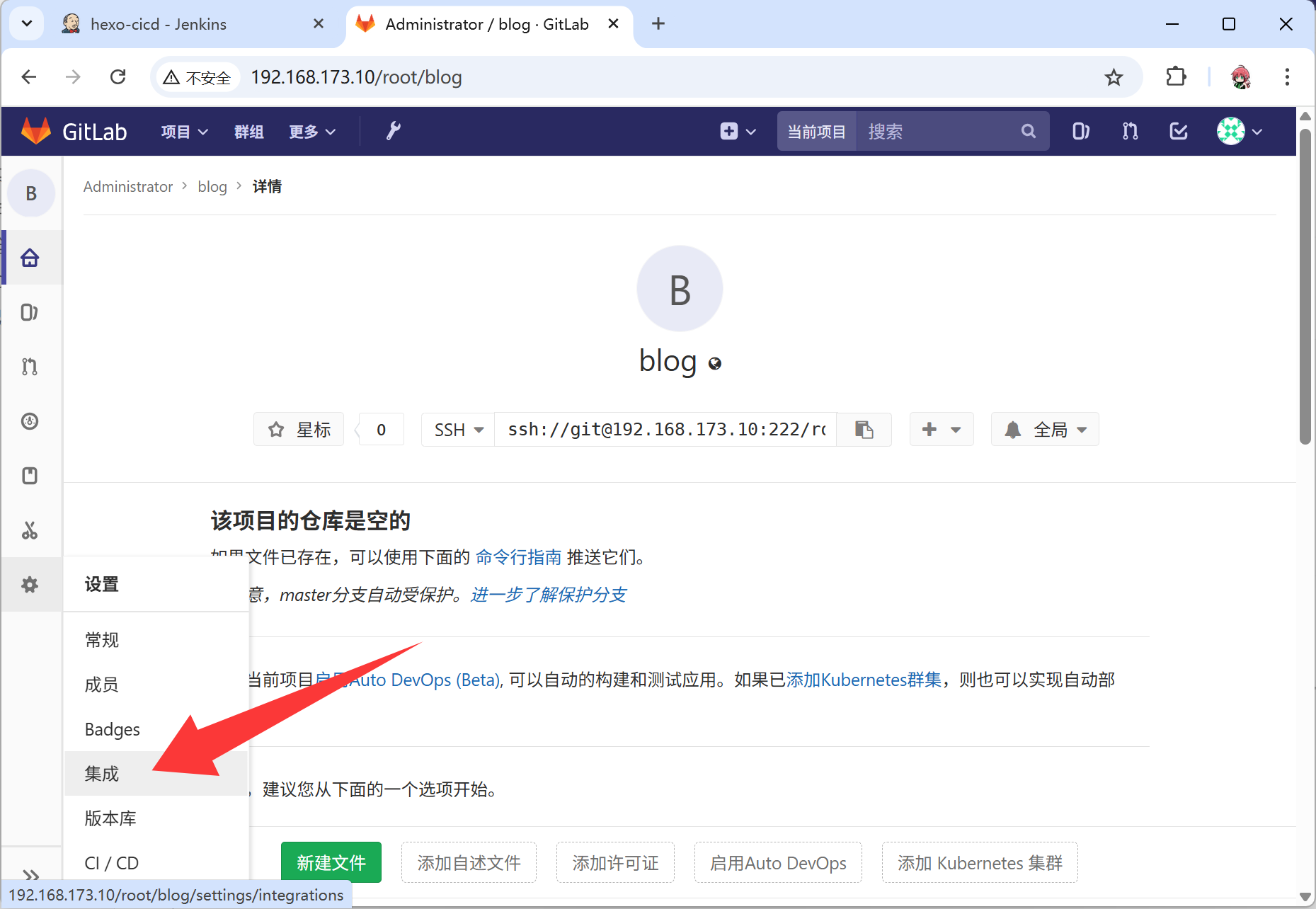

• 配置 gitlab 和 jenkins 的联动

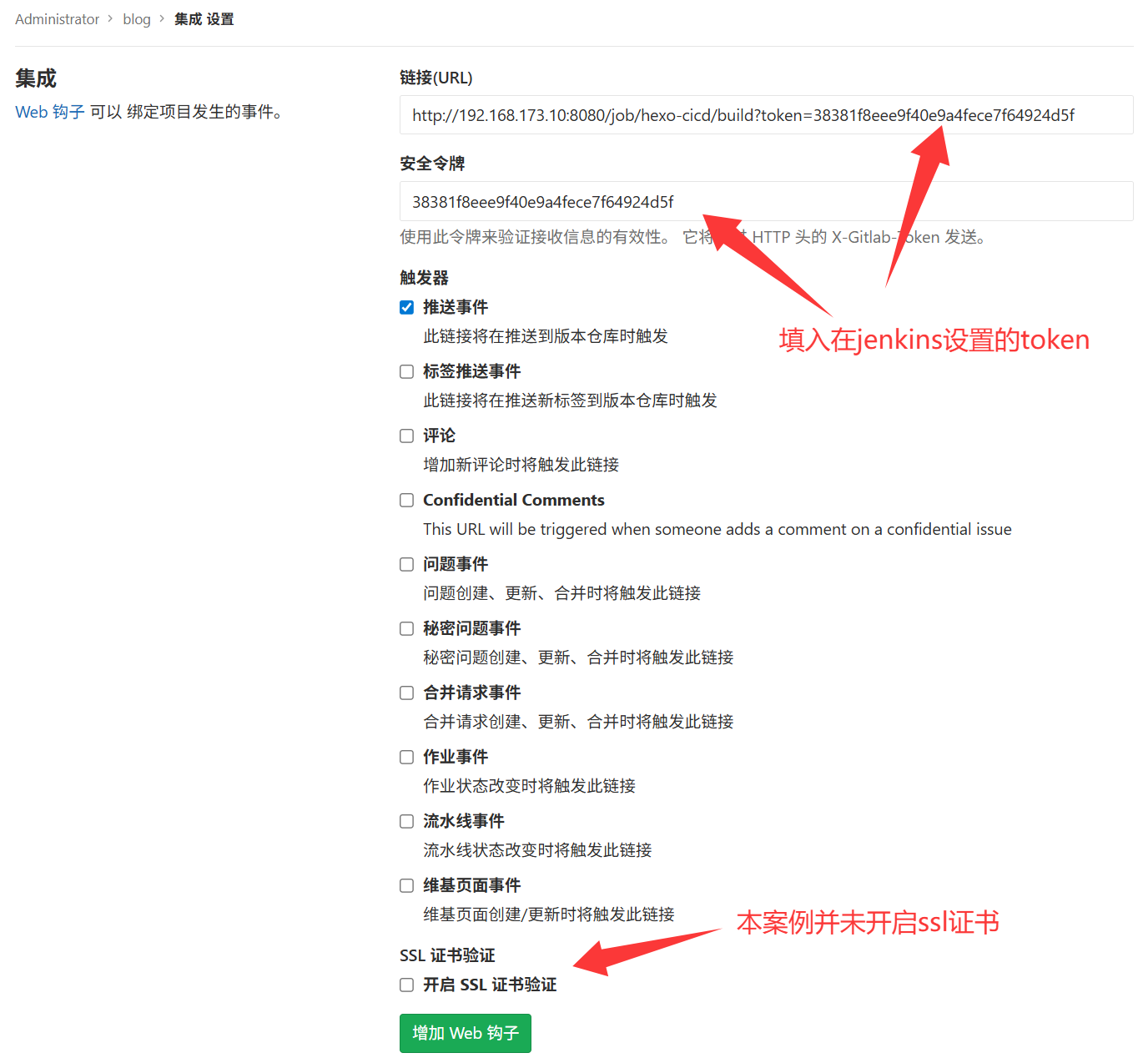

• 配置触发的钩子

3.5 编写Dockerfile

• 编写Dockerfile，用于将新的前端代码加入nginx的镜像中

# 将Dockerfile文件加入到hexo的源码目录中
FROM 192.168.173.20/library/nginx:latest
MAINTAINER Aaronxu
ADD ./public  /usr/share/nginx/html/
EXPOSE 80
CMD ["nginx", "-g","daemon off;"]

3.6 测试

• 本地部署hexo博客，然后将代码推送到仓库中
• 本地找一个空文件夹，然后cmd进入文件夹中

D:\blog>hexo init		# 安装hexo请参考官网教程
D:\blog>hexo g
D:\blog>git init
D:\blog>git remote add origin ssh://git@192.168.173.10:222/root/blog.git
D:\blog>git add .
D:\blog>git commit -m "Initial commit"
D:\blog>git push -u origin master
Enumerating objects: 25, done.
Counting objects: 100% (25/25), done.
Delta compression using up to 16 threads
Compressing objects: 100% (18/18), done.
Writing objects: 100% (25/25), 278.72 KiB | 5.36 MiB/s, done.
Total 25 (delta 3), reused 0 (delta 0), pack-reused 0 (from 0)
To ssh://192.168.173.10:222/root/blog.git
 * [new branch]      master -> master
branch 'master' set up to track 'origin/master'.

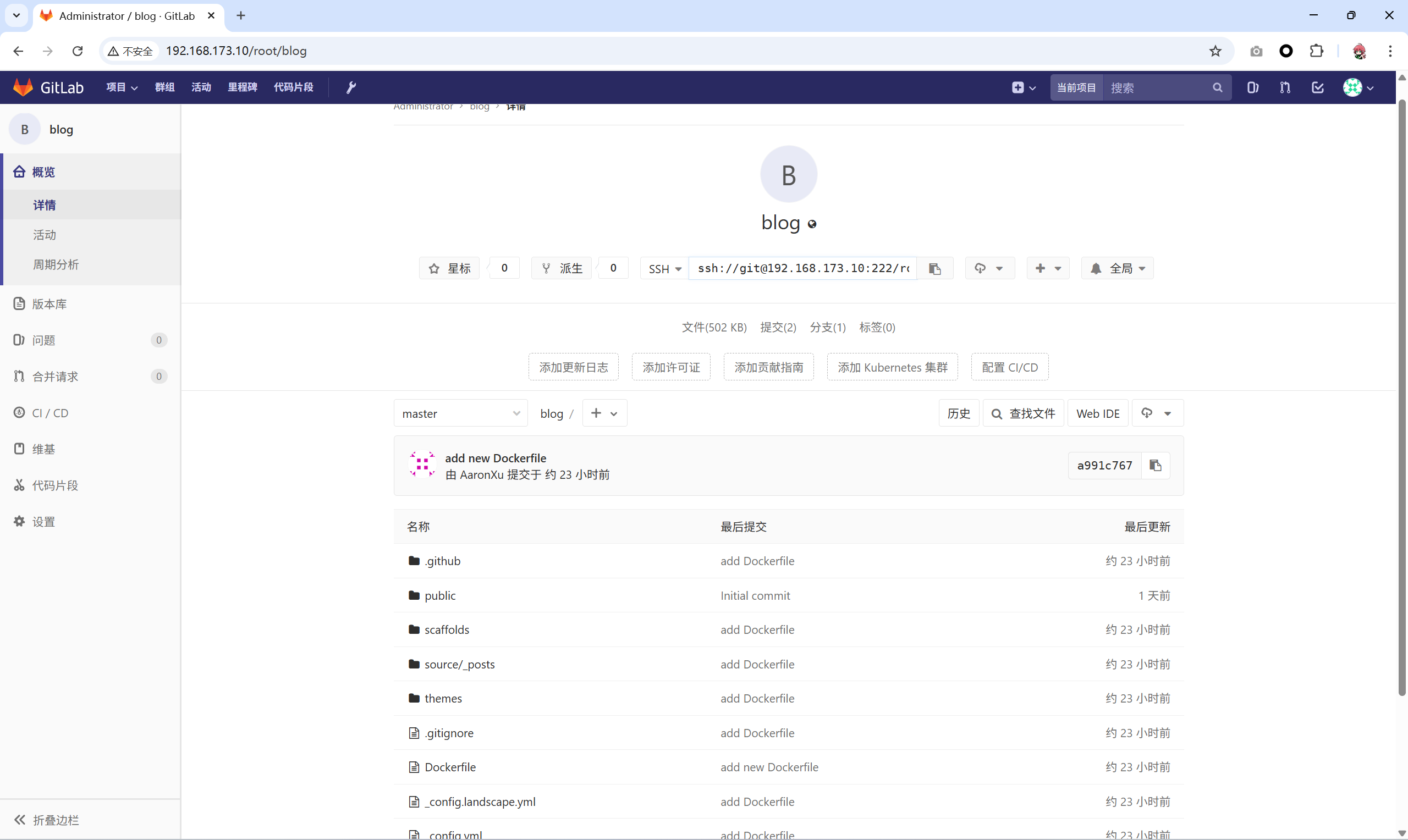

• 确保仓库中代码已成功上传

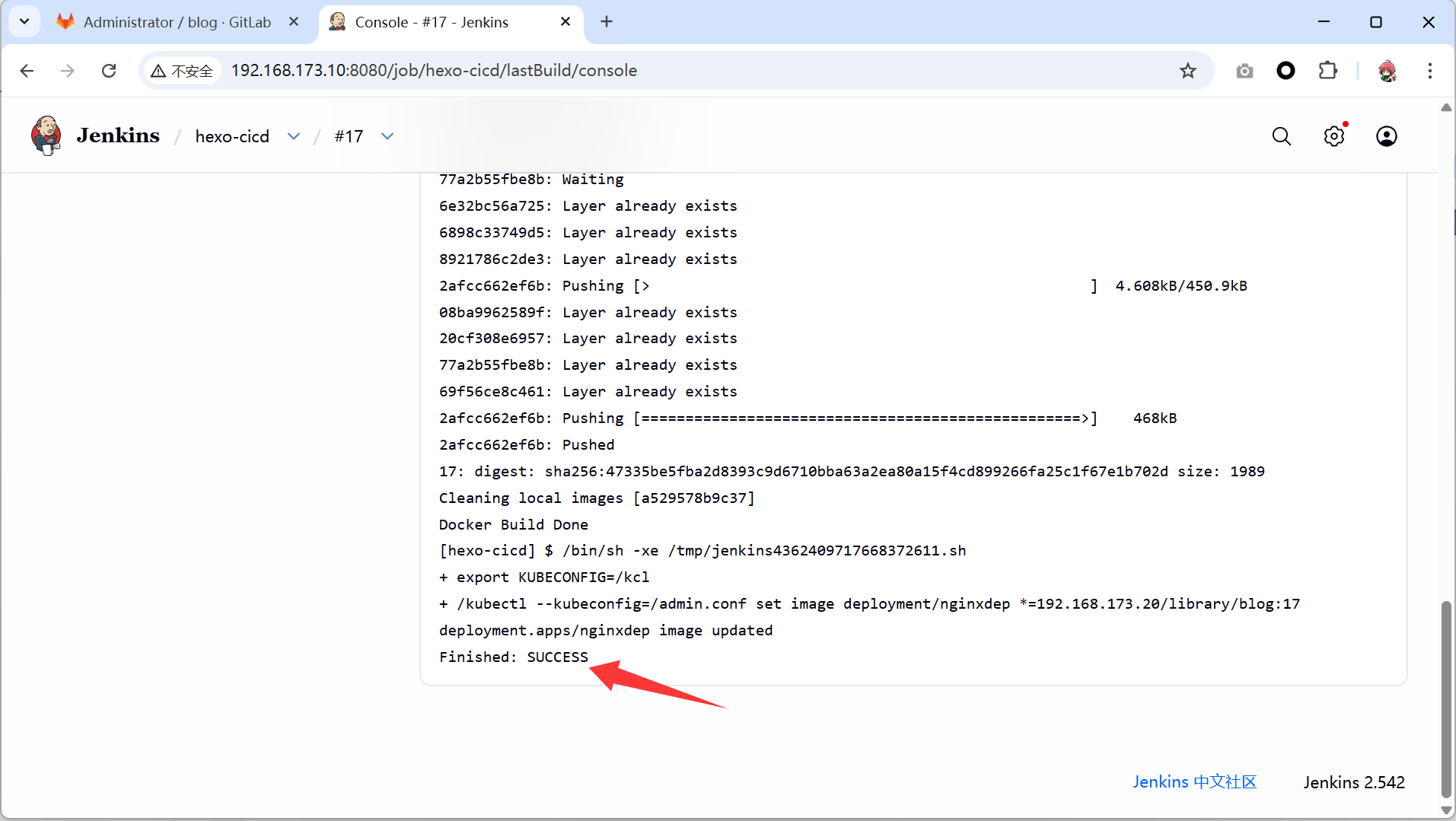

• 确认成功执行

• 查看到pods自动更新的状态

[root@node01 ~]# kubectl get pods
NAME                        READY   STATUS        RESTARTS      AGE
nginxdep-7dc8c7dc56-kxvxl   1/1     Terminating   1 (46h ago)   46h
nginxdep-bbffc4f57-8cnzd    1/1     Running       0             30s
nginxdep-bbffc4f57-kjh7b    1/1     Running       0             58s

• 访问页面，确认成功
